EXPLORIST.life Ford Transit 540Ah – 3k 24V Inverter – 580W to 1700W Dual Solar Array

(1 customer review)

From: $0.00

This DIY electrical system can be customized to your needs. The default selections are the selections as shown in the video tutorial. Batteries are not included and should be selected separately.

Click the arrow next to each kit name for specifics on what is included in the kit.

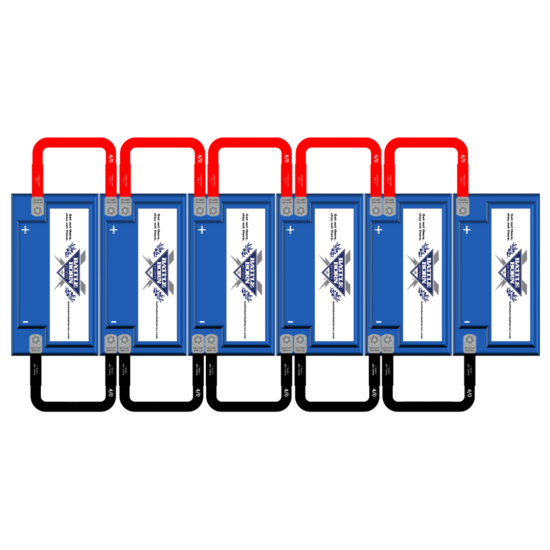

Battery Bank Wiring Kit

Lynx Distributor Wiring Kit

Lynx Distributor, Victron Lynx Distributor, Modular Busbar

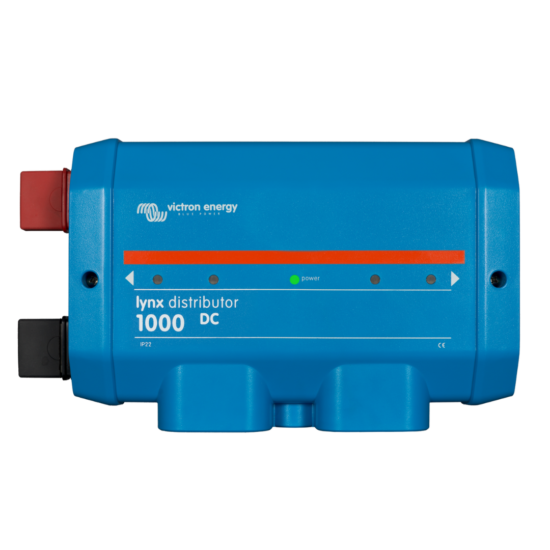

Victron Lynx Distributor (M8)

The Victron Lynx Distributor is a modular busbar and fuse holder system and is the perfect way to distribute overcurrent-protected DC power.

Original price was: $237.00.Current price is: $201.45. each

In stock

Second Lynx Distributor Mounting Hardware (included)

Original price was: $0.49.Current price is: $0.00.

Victron Lynx Shunt VE.Can

Original price was: $418.00.Current price is: $355.30.

In stock

Inverter/Charger Wiring Kit

This Victron Inverter/Charger wiring kit includes everything you need to connect an Inverter/Charger to a Victron Lynx Distributor.

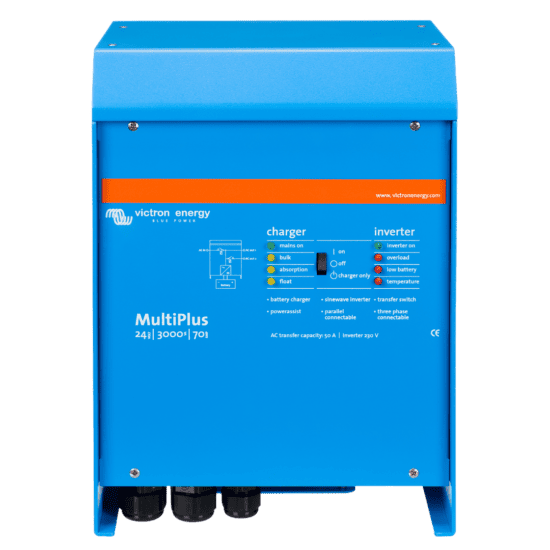

Victron Multiplus 24/3000 70-50 120V

This inverter/charger is recommended for use with 30A Shore Power Service.

If you have 50A Shore Power, see the Victron Multiplus-II 24/3000 70-50 2x120V

PROGRAMMING INFORMATION:

  • Choose your battery bank manufacturer below to have the inverter programmed for you for an additional $60.
  • For self-programming, choose Self-Programmed to add the Victron Interface MK3-USB-C programming dongle for an additional $59.50.
  • For unprogrammed inverters, choose unprogrammed.

Please allow an additional 3-5 business days for programmed inverter processing.

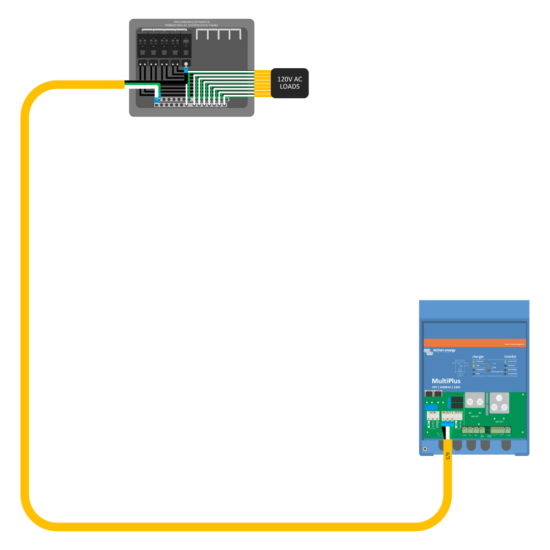

120V AC Distribution Panel Wiring Kit

120V AC Distribution Panel

$94.99

In stock

12V DC Fuse Panel

$64.99 each

In stock

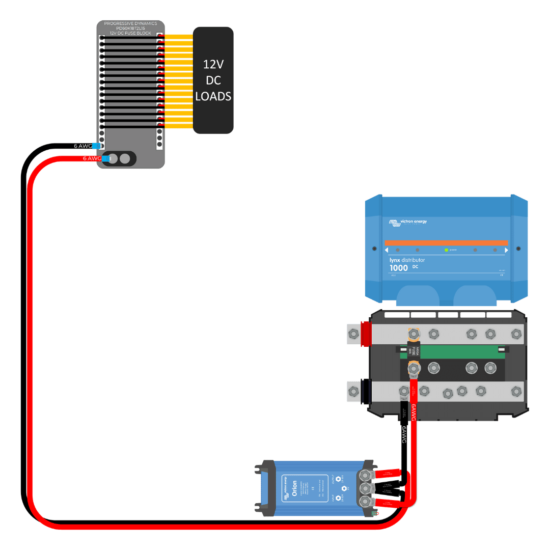

Victron Orion 24/12-70A Converter Wiring Kit

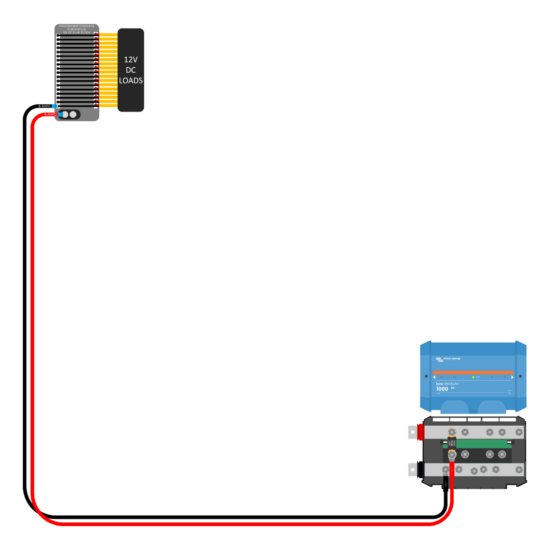

12V DC Fuse Panel Wiring Kit

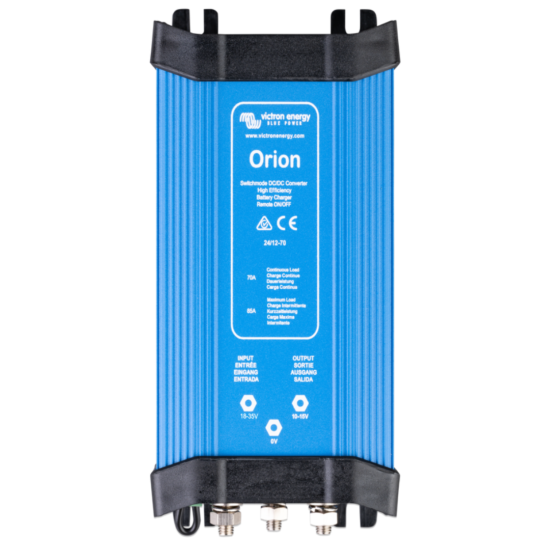

Victron Orion 24|12 70A DC-DC Converter

Original price was: $146.00.Current price is: $124.10.

In stock

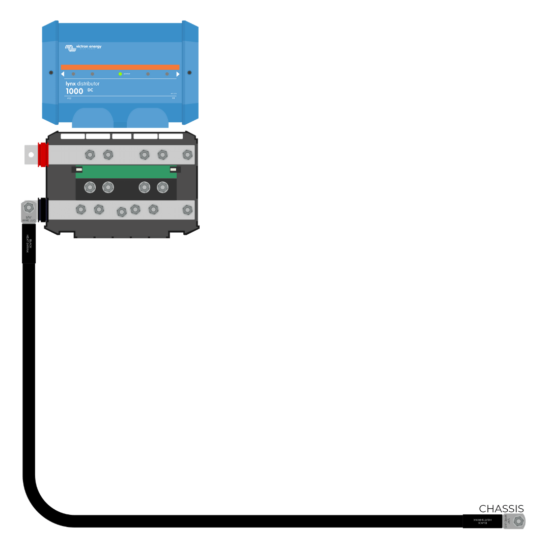

Chassis Ground Wire Kit

Victron SmartSolar MPPT 100|30

The Victron SmartSolar MPPT 100|30 can regulate a solar array with an open circuit voltage of up to 100V down to charge a 12V or 24V battery bank at a max rate of 30A, giving great flexibility when designing a solar array.

Original price was: $151.00.Current price is: $128.35.

In stock

Victron SmartSolar MPPT 100|30 Wiring Kit

$66.99

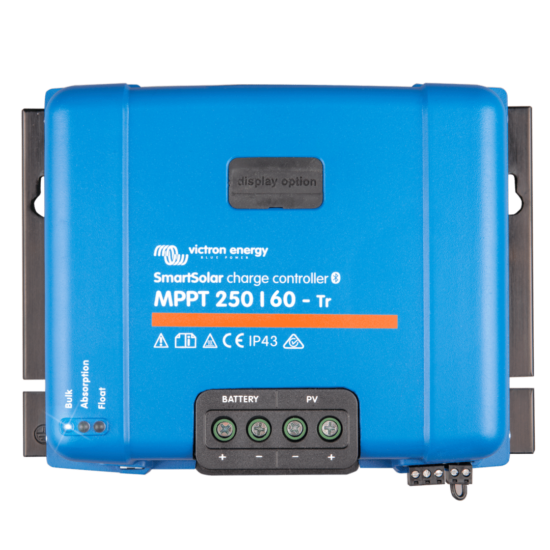

Victron SmartSolar MPPT 250|60

The Victron SmartSolar MPPT 250|60 can regulate a solar array with an open circuit voltage of up to 250V down to charge a 12V, 24V, 36V, or 48V battery bank at a max rate of 60A, giving great flexibility when designing a solar array.

Original price was: $488.00.Current price is: $414.80.

In stock

Victron SmartSolar MPPT 250|60 Wiring Kit

$94.99

Solar Array Wiring Kit (Single/Dual/Ground Deploy Array Options)

PV Connector

$2.49 each

In stock

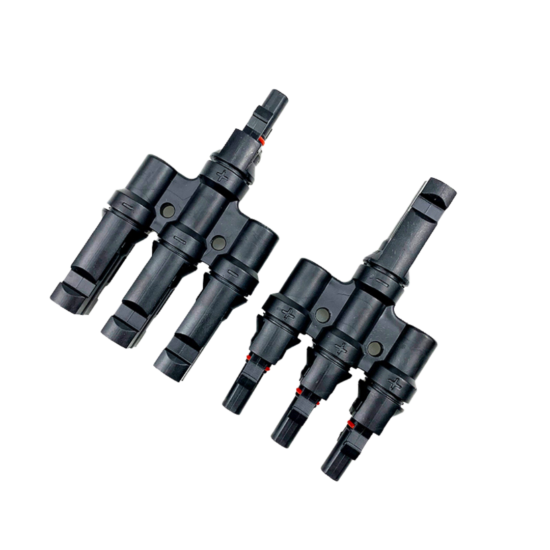

3-to-1 PV Branch Connector

$15.99

In stock

10A PV Fuse

$13.99 each

In stock

20A PV Fuse

$13.99

In stock

10 AWG Solar Wire

Red and Black Solar Wire - Sold in 10ft increments (both red & black wire included)

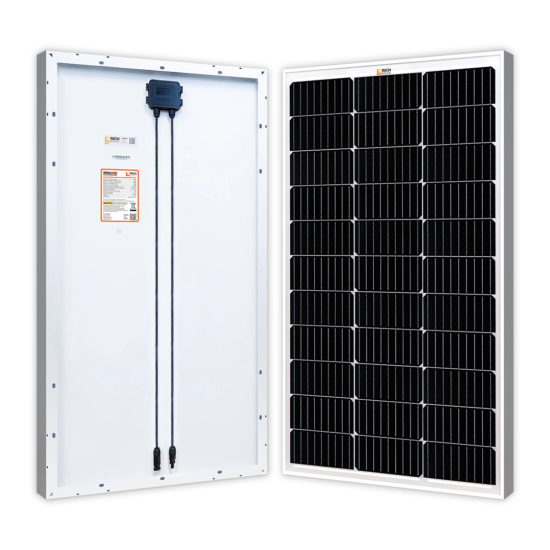

Rich Solar Mega 200 Watt 12 Volt Solar Panel

Original price was: $239.99.Current price is: $219.99. each

Rich Solar Mega 55 Watt 12 Volt Solar Panel

$69.99 each

In stock

Rich Solar Mega 35 Watt 12 Volt Solar Panel

$54.99 each

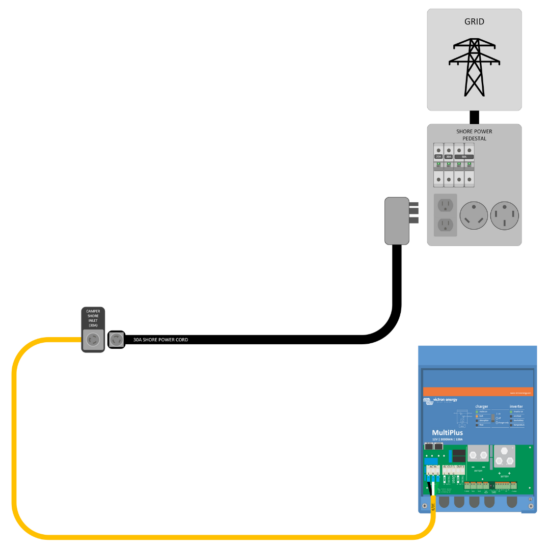

30 Amp Shore Power Wiring Kit – Black Inlet

Shore Power Cord

30 Amp Shore Power Cord - 25'

$49.99

In stock

15 Amp to 30 Amp Power Adapter Plug

$7.99

In stock

Victron Cerbo GX

Original price was: $324.00.Current price is: $275.40.

In stock

Victron GX Touch 70

Original price was: $381.00.Current price is: $323.85.

In stock

Victron GX Touch 70 Wall Mount

Original price was: $24.00.Current price is: $20.40.

In stock

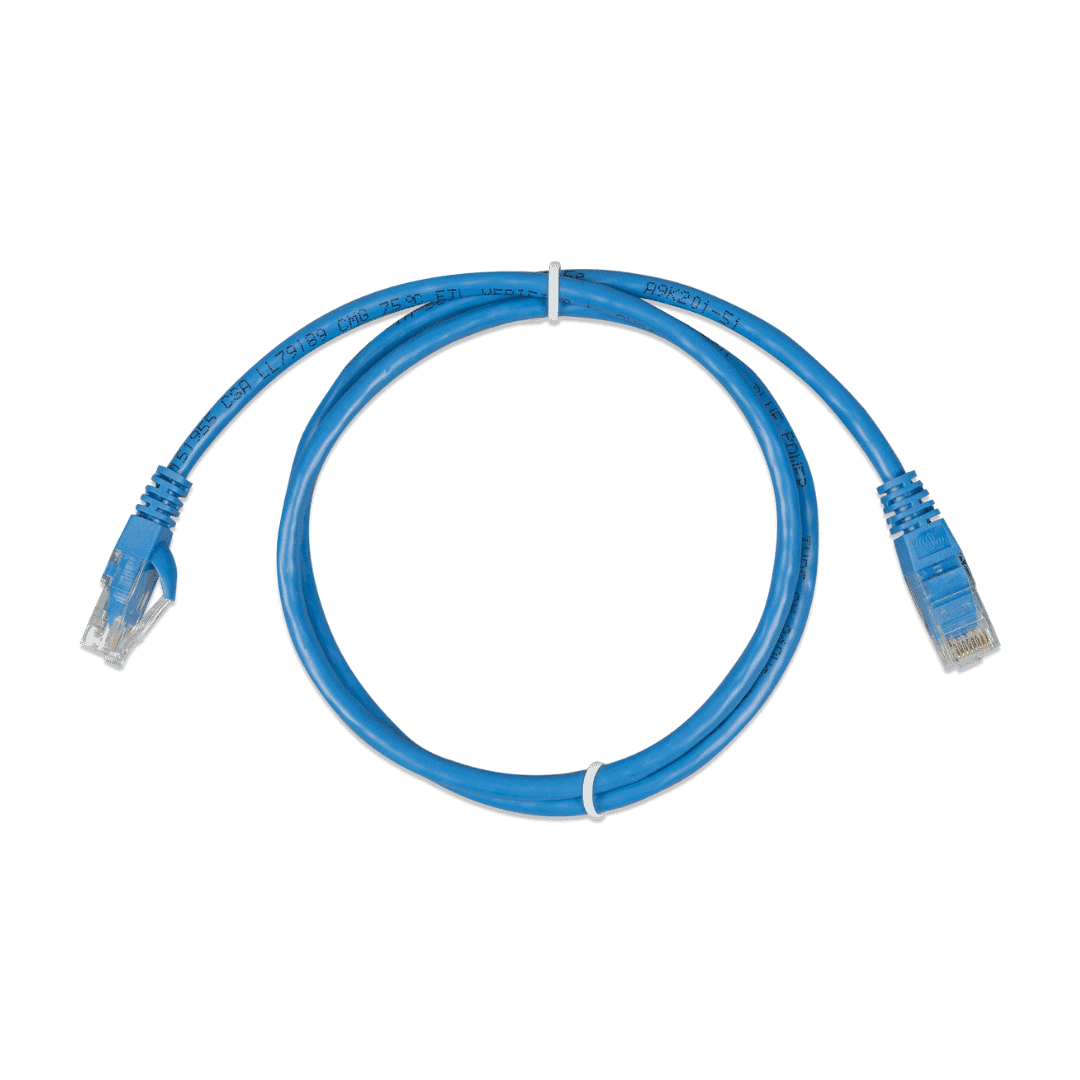

Victron RJ45 UTP Cable

RJ45 Cable from Inverter/Charger to Cerbo GX:

Victron RJ45 UTP Cable

RJ45 Cable from Lynx Shunt to Cerbo GX:

VE.Direct Cable from Primary MPPT Charge Controller to Cerbo GX:

VE.Direct Cable from Secondary MPPT Charge Controller to Cerbo GX:

Cerbo GX Mounting Hardware

Original price was: $0.49.Current price is: $0.00.

Dual Victron Orion-TR Smart 12-24-15 DC to DC Charger Wiring Kit

This kit includes everything you need to be able to connect TWO Victron Orion-TR Smart 12-12-30 or 12-24-15 DC-DC Chargers to your engine starting battery.

Victron Orion Tr-Smart 12V-24V | 15A Isolated DC-DC Charger

Original price was: $287.00.Current price is: $243.95. each

In stock

Victron SmartShunt 500A

Victron SmartShunt 500A

Original price was: $118.00.Current price is: $100.30.

In stock

540Ah Battery Bank - 3000W 24V MultiPlus - 580w-1700w Solar Wiring Diagram EXPLORIST.life 2021 Ford Transit Camper Van

$9.99
SKU: bundle-youtubeproject-transit Categories: , , ,

Description

This is a complete DIY camper electrical system wiring kit as shown in our 2021 Ford Transit camper van in our video tutorial below. This system features 540Ah of Battle Born lithium batteries, a Victron 24/3000 Inverter/Charger, Dual Victron Orion 12-24-15 Chargers, and 580W of solar on a custom-designed roof rack from Unaka Gear Co. Up to an additional 1700W of ground deploy solar can also be added from the second MPPT Charge Controller

BATTERY OPTIONS:

The following battery options are suitable for this system . The required minimum quantity is listed below:

COMPONENT QUANTITY LINK TO BUY
Suitable Battery Options (minimum 400Ah @12V/200Ah @24V required):
Battle Born 100Ah 12V LiFePO4 Deep Cycle Battery 4+ CLICK HERE TO BUY
Battle Born 100Ah GC2 12V LiFePO4 Deep Cycle Battery 4+ CLICK HERE TO BUY
Battle Born 270Ah 12V LiFePO4 Deep Cycle GC3 Battery 2+ CLICK HERE TO BUY
Battle Born 270Ah 12V LiFePO4 Deep Cycle Heated GC3 Battery 2+ CLICK HERE TO BUY

This is the complete DIY camper electrical wiring kit as shown in the following video:

https://www.youtube.com/watch?v=E5q7_4FH4LQ

Dual Orion Alternator Charging:

https://youtu.be/FuBAKTCCnt4
Click to Expand System Charging/Programming Parameters

SmartSolar MPPT 100/30 Settings:

  • Battery:
    • Battery Voltage: 24V
    • Max charge current: 30A
    • Charger enabled: On
    • Battery preset: User Defined
    • Expert Mode: On
    • Absorption voltage: 28.8V
    • Float voltage: 27.2V
    • Equalization voltage: 28.6V
    • Re-bulk Voltage offset: 0.20V
    • Absorption duration: Adaptive
    • Maximum absorption time: 1h 0m
    • Tail Current: 2.0A
    • Equalization current percentage: 25%
    • Automatic equalization: Disabled
    • Equalization stop mode: Fixed time
    • Equalization duration: 1h 0m
    • Manual Equalization: DO NOT PRESS
    • Temperature compensation: Disabled
    • Low-temperature cut-off: Disabled
  • Load Output: Leave everything as default
  • Streetlight: Leave everything as default
  • TX port function: Leave everything as default
  • RX port function: Leave everything as default
  • VE.Smart networking: Create VE.Smart Network

SmartSolar MPPT 250/60 Settings:

  • Battery:
    • Battery Voltage: 24V
    • Max charge current: 60A
    • Charger enabled: On
    • Battery preset: User Defined
    • Expert Mode: On
    • Absorption voltage: 28.8V
    • Float voltage: 27.2V
    • Equalization voltage: 28.6V
    • Re-bulk Voltage offset: 0.20V
    • Absorption duration: Adaptive
    • Maximum absorption time: 1h 0m
    • Tail Current: 2.0A
    • Equalization current percentage: 25%
    • Automatic equalization: Disabled
    • Equalization stop mode: Fixed time
    • Equalization duration: 1h 0m
    • Manual Equalization: DO NOT PRESS
    • Temperature compensation: Disabled
    • Low-temperature cut-off: Disabled
  • Load Output: Leave everything as default
  • Relay: Leave everything as default
  • Streetlight: Leave everything as default
  • TX port function: Leave everything as default
  • RX port function: Leave everything as default
  • VE.Smart networking: Create VE.Smart Network

Lynx Shunt Settings:

  • Battery Capacity: 270Ah
  • Charged Voltage: 28.6V
  • Tail current: 4%
  • Charged Detection Time: 3m
  • Peukert exponent: 1.05
  • Charge Efficiency Factor: 99%
  • Current Threshold: .10A
  • Time-to-go averaging period: 3m
  • Synchronise SoC to 100%: DO NOT PRESS
  • Zero current calibration: DO NOT PRESS

Lynx Shunt Settings:

  • Battery Capacity: 270Ah
  • Charged Voltage: 28.6V
  • Tail current: 4%
  • Charged Detection Time: 3m
  • Peukert exponent: 1.05
  • Charge Efficiency Factor: 99%
  • Current Threshold: .10A
  • Time-to-go averaging period: 3m
  • Synchronise SoC to 100%: DO NOT PRESS
  • Zero current calibration: DO NOT PRESS

Note: There are a TON of things you can change/add in the Cerbo GX. It’s basically a fully functioning computer. The items above will get it so that your batteries are charging properly and your monitoring is all set up, but I encourage you to dive into the Cerbo GX and learn it’s full capabilities.

Multiplus Settings are Pre-Set from Battle Born

Additional information

Battery Bank Wiring Kit

Weight 9.5 lbs
Dimensions 10 × 10 × 2 in
Select Your Battery Bank

8 Batteries – 1/0 Wire – 24V Battery Bank Wiring Kit, 6 Batteries – 1/0 Wire – 24V Battery Bank Wiring Kit, 4 Batteries – 1/0 Wire – 24V Battery Bank Wiring Kit, 2 Batteries – 1/0 Wire – 24V Battery Bank Wiring Kit
Wiring Kit Application

Battery Bank

Lynx Distributor Wiring Kit

Weight 14 lbs
Dimensions 12 × 12 × 6 in
Lynx Distributor Wiring Kit Options

Lynx Distributor – 1/0 Wire – BMV-712, Lynx Distributor – 1/0 Wire – Lynx Shunt
Wiring Kit Application

Distribution Panel, Fuse Panel/Breaker Box

Victron Lynx Distributor (M8)

Weight 5 lbs
Dimensions 16 × 7.5 × 3.5 in

Second Lynx Distributor Mounting Hardware (included)

Weight 0.1 lbs
Dimensions 2 × 2 × 0.2 in

Victron Lynx Shunt VE.Can

Weight 3 lbs
Dimensions 12 × 12 × 6 in
Current Rating

1000Adc continuous
Battery Bank Voltage

12V, 24V, 48V

Inverter/Charger Wiring Kit

Weight 13 lbs
Dimensions 10 × 10 × 4 in
Select Your Inverter/Charger:

Victron MultiPlus 24/3000/70-50 120V
Wiring Kit Application

Inverter/Charger

Victron Multiplus 24/3000 70-50 120V

Weight 40 lbs
Dimensions 14.3 × 10.2 × 8.6 in
Shore Power Amperage

30A
Battery Bank Voltage

24V
Programming

Battle Born LiFePO4 Batteries (+$60.00), Dakota LiFePO4 Batteries (+$60.00), EG4 LiFePO4 Batteries (+$60.00), Epoch LiFePO4 Batteries (+$60.00), Expion 360 LiFePO4 Batteries (+$60.00), Relion LiFePO4 Batteries (+$60.00), Renogy LiFePO4 Batteries (+$60.00), Rich Solar LiFePO4 Batteries (+$60.00), Victron Smart NG LiFePO4 Batteries (+$60.00), Other/Semi-Universal LiFePO4 Batteries (+$60.00), Self Programmed – ADD Interface MK3-USB-C (+59.50), Unprogrammed (+$0.00)

120V AC Distribution Panel Wiring Kit

Weight 8 lbs
Dimensions 10 × 10 × 4 in
Choose Your Wire Length:

10ft, 15ft
Choose Your Inverter/Charger Type

MultiPlus, Quattro, Multiplus-II 2x120V
Wiring Kit Application

Fuse Panel/Breaker Box

120V AC Distribution Panel

Weight 3 lbs
Dimensions 12 × 10 × 4 in
Max Amperage Output

50A

12V DC Fuse Panel

Weight 2 lbs
Dimensions 10 × 5 × 2 in

Victron Orion 24/12-70A Converter Wiring Kit

Weight 3 lbs
Dimensions 10 × 10 × 2 in
Wire Length

10ft, 15ft
Wiring Kit Application

DC-DC Converter, Fuse Panel/Breaker Box

12V DC Fuse Panel Wiring Kit

Weight 3 lbs
Dimensions 10 × 10 × 2 in
Choose Your Kit:

Second Fuse Panel Add-On Kit – 15ft, Second Fuse Panel Add-On Kit – 20ft
Wiring Kit Application

Fuse Panel/Breaker Box

Victron Orion 24|12 70A DC-DC Converter

Weight 2.5 lbs
Dimensions 2.6 × 3.5 × 7.7 in

Chassis Ground Wire Kit

Weight 4.5 lbs
Dimensions 10 × 10 × 2 in
Select Your Ground Wire Size:

1/0 AWG
Wiring Kit Application

Chassis Ground

Victron SmartSolar MPPT 100|30

Weight 3 lbs
Dimensions 8 × 5 × 3.75 in
Max Input Voltage

100V
Max Amperage Output

30A
Battery Bank Voltage

12V, 24V
Max Wire Size

6 AWG

Victron SmartSolar MPPT 100|30 Wiring Kit

Weight 2 lbs
Dimensions 10 × 10 × 2 in
Max Input Voltage

100V, 150V, 250V
Max Amperage Output

30A
Battery Bank Voltage

12V, 24V
Max Wire Size

6 AWG

Victron SmartSolar MPPT 250|60

Weight 12.5 lbs
Dimensions 13.5 × 11.5 × 6.5 in
Max Input Voltage

250V
Max Amperage Output

85A
Battery Bank Voltage

12V, 24V, 36V, 48V
Max Wire Size

2 AWG

Victron SmartSolar MPPT 250|60 Wiring Kit

Weight 4 lbs
Dimensions 10 × 10 × 2 in
Battery Bank Voltage

12V, 24V, 36V, 48V
Max Amperage Output

60A
Max Input Voltage

250V
Max Wire Size

2 AWG

Solar Array Wiring Kit (Single/Dual/Ground Deploy Array Options)

Weight 2.5 lbs
Dimensions 10 × 10 × 4 in
Choose Your Array Type:

Single Roof Array, Dual Roof Array, Roof and Ground Deploy Arrays, Single Roof Array for OEM Solar Ready, Add-On Ground Deploy Array, Add-On 2nd Roof Array
Wiring Kit Application

Solar Array

PV Connector

Weight 0.2 lbs
Dimensions 4 × 1 × 1 in

3-to-1 PV Branch Connector

Weight 0.4 lbs
Dimensions 4 × 6 × 1 in

10A PV Fuse

Weight 0.2 lbs
Dimensions 4 × 1 × 1 in

20A PV Fuse

Weight 0.2 lbs
Dimensions 4 × 1 × 1 in

10 AWG Solar Wire

Weight 0.2 lbs
Dimensions 10 × 10 × 0.1 in
Feet

10 ft., 20 ft., 30 ft., 40 ft., 50 ft., 60 ft., 70 ft., 80 ft., 90 ft., 100 ft.

Rich Solar Mega 200 Watt 12 Volt Solar Panel

Weight 26.5 lbs
Dimensions 58.7 × 26.8 × 1.2 in
Solar Panel Wattage

200W

Rich Solar Mega 55 Watt 12 Volt Solar Panel

Weight 8.8 lbs
Dimensions 25 × 20 × 1.2 in
Solar Panel Wattage

55W

Rich Solar Mega 35 Watt 12 Volt Solar Panel

Weight 5.5 lbs
Dimensions 33 × 9.5 × 1.2 in
Solar Panel Wattage

35W

30 Amp Shore Power Wiring Kit – Black Inlet

Weight 2 lbs
Dimensions 6 × 6 × 4 in
Select Your Inverter/Charger:

MultiPlus
Wiring Kit Application

Shore Power

30 Amp Shore Power Cord - 25'

Weight 7.5 lbs
Dimensions 11 × 11 × 4 in

15 Amp to 30 Amp Power Adapter Plug

Weight 0.2 lbs
Dimensions 3 × 3 × 3 in

Victron Cerbo GX

Weight 0.875 lbs
Dimensions 5.63 × 3.07 × 1.89 in

Victron GX Touch 70

Weight 2 lbs
Dimensions 10 × 7 × 5 in

Victron GX Touch 70 Wall Mount

Weight 1 lbs
Dimensions 10 × 7 × 5 in

RJ45 Cable from Inverter/Charger to Cerbo GX:

Weight 1 lbs
Dimensions 6 × 6 × 4 in
Length

0,3m, 0,9m, 1,8m, 3m, 5m, 10m

RJ45 Cable from Lynx Shunt to Cerbo GX:

Weight 1 lbs
Dimensions 6 × 6 × 4 in
Length

0,3m, 0,9m, 1,8m, 3m, 5m, 10m

VE.Direct Cable from Primary MPPT Charge Controller to Cerbo GX:

Weight 1 lbs
Dimensions 6 × 9 × 1 in
Length

0,3m, 0,9m, 1,8m, 3m, 5m, 10m

VE.Direct Cable from Secondary MPPT Charge Controller to Cerbo GX:

Weight 1 lbs
Dimensions 6 × 9 × 1 in
Length

0,3m, 0,9m, 1,8m, 3m, 5m, 10m

Cerbo GX Mounting Hardware

Weight 0.1 lbs
Dimensions 2 × 2 × 0.2 in

Dual Victron Orion-TR Smart 12-24-15 DC to DC Charger Wiring Kit

Weight 15 lbs
Dimensions 10 × 10 × 4 in
Wire Lentgh

20ft, 30ft, 40ft
Wiring Kit Application

Alternator Charging

Victron Orion Tr-Smart 12V-24V | 15A Isolated DC-DC Charger

Weight 4 lbs
Dimensions 8 × 3 × 4 in

Victron SmartShunt 500A

Weight 1 lbs
Dimensions 6 × 6 × 4 in

540Ah Battery Bank - 3000W 24V MultiPlus - 580w-1700w Solar Wiring Diagram EXPLORIST.life 2021 Ford Transit Camper Van

Inverting Capacity

3000 VA
Application

YouTube Project – 2021 Ford Transit
Shore Power Amperage

30A

1 review for EXPLORIST.life Ford Transit 540Ah – 3k 24V Inverter – 580W to 1700W Dual Solar Array

  1. Nathaniel Stephens (verified owner) –

    Truly couldn’t say enough great things about EXPLORIST.life and this entire product package!! As a first-time van builder, the world of electricity seemed daunting, however, after stumbling across Nate & Steph’s detailed video series on YouTube I was confident this would be the best direction. In addition to the top-notch tutorial video and extremely well-organized shipment, they’ve been there every step of the way to answer questions and provide guidance on a couple of ‘oopsie’ or ‘rookie mistakes’ I made during the planning process. Oh so grateful for folks like Nate & Steph and will be looking to their shop for any of my future van-building needs. Cheers!

Add a review

Your email address will not be published. Required fields are marked *

Related products
