Lynx Distributor Wiring Kit

Rated 5.00 out of 5 based on 3 customer ratings

Price range: $199.99 through $389.99

The Lynx Distributor wiring kit includes everything you need to connect the Lynx Distributor to the battery bank and either Lynx Shunt or BMV-712 (Lynx Distributor, Lynx Shunt, and BMV-712 Battery Monitor sold separately).

Lynx Distributor Wiring Kit Options	Clear

Add the Lynx Distributor, Lynx Shunt, or BMV-712:

Victron Lynx Distributor (M8)

The Victron Lynx Distributor is a modular busbar and fuse holder system and is the perfect way to distribute overcurrent-protected DC power.

Add for

Out of stock

Victron Lynx Distributor (M10)

The Victron Lynx Distributor (M10) is a modular busbar and fuse holder system and is the perfect way to distribute overcurrent-protected DC power.

Add for

Victron BMV-712 Battery Monitor (Black)

Add for

Victron Lynx Shunt VE.Can (M8) - Discontinued

This product has been discontinued and replaced by the Lynx Shunt VE.Can (M10).

Add for

Victron Lynx Shunt VE.Can (M10)

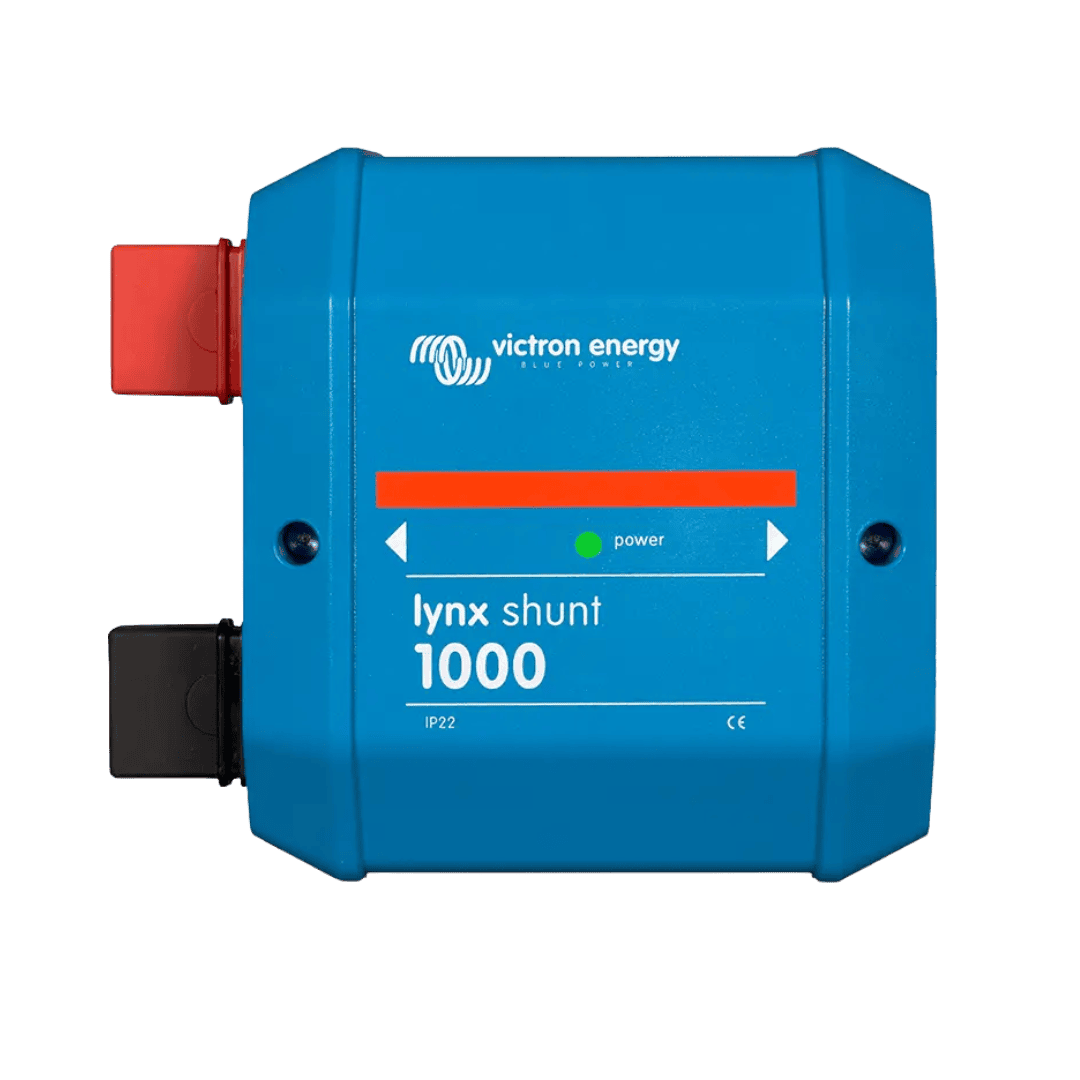

The Victron Lynx Shunt (M10) is a 1000A intelligent shunt with integrated battery monitoring and VE.Can communication for seamless GX device integration within Victron's Lynx modular system.

Add for

SKU: wk-lynx-0000-400 Categories: ALL PRODUCTS, WIRING KITS, COMPONENT WIRING KITS

Description

Each kit includes the appropriate size and quantities of the following:

Lynx Distributor (M10) Wiring Kits:

NOTE: Lynx Distributor (M10) wiring kits include parts to install either a Victron Lynx Shunt, SmartShunt, or BMV-712. Depending on which shunt is used, you may have screws and/or bolts/nuts/washers left over after your installation.

Lynx Distributor (M10) – 4/0 Wire

4/0 Red Battery Wire	5ft
4/0 Black Battery Wire	5ft
4/0 x 5/16″ Wire Lugs	4
4/0 x 3/8″ Wire Lugs	2
1″ Red Heat Shrink	4
1″ Black Heat Shrink	2
400 Amp Class T Fuse	1
Blue Sea Systems Class T Fuse Holder with Insulating Cover – 225-400A	1
BEP 770-EZ Mount On/Off Switch	1
18 – 22 AWG Butt Splice Connector	1
Mounting Hardware and Custom Spacers – Lynx Distributor	1pk
Mounting Hardware – Class T Fuse Holder	1pk
Mounting Hardware and Spacers – BEP 770-EZ Switch	1pk
Mounting Hardware and Custom Spacers – Lynx Shunt*	1pk
Lynx Shunt Hardware*	1pk
Mounting Hardware and Spacers – BMV-712 Shunt/SmartShunt*	1pk
*Note: Shunt hardware will vary depending on whether a BMV/SmartShunt or Lynx Shunt is used in the system.

Lynx Distributor (M10) – 2/0 Wire

2/0 Red Battery Wire	5ft
2/0 Black Battery Wire	5ft
2/0 x 5/16″ Wire Lugs	2
2/0 x 3/8″ Wire Lugs	2
3/4″ Red Heat Shrink	2
3/4″ Black Heat Shrink	2
300A MRBF Terminal Fuse	1
MRBF 30-300A Terminal Fuse Block – Single	1
BEP 770-EZ Mount On/Off Switch	1
18 – 22 AWG Butt Splice Connector	1
Mounting Hardware and Custom Spacers – Lynx Distributor	1pk
Mounting Hardware and Spacers – BEP 770-EZ Switch	1pk
Mounting Hardware and Custom Spacers – Lynx Shunt*	1pk
Lynx Shunt Hardware*	1pk
Mounting Hardware and Spacers – BMV-712 Shunt/SmartShunt*	1pk
*Note: Shunt hardware will vary depending on whether a BMV/SmartShunt or Lynx Shunt is used in the system.

Lynx Distributor (M10) – 1/0 Wire

1/0 Red Battery Wire	5ft
1/0 Black Battery Wire	5ft
1/0 x 5/16″ Wire Lugs	2
1/0 x 3/8″ Wire Lugs	2
3/4″ Red Heat Shrink	2
3/4″ Black Heat Shrink	2
300A MRBF Terminal Fuse	1
MRBF 30-300A Terminal Fuse Block – Single	1
BEP 770-EZ Mount On/Off Switch	1
18 – 22 AWG Butt Splice Connector	1
Mounting Hardware and Custom Spacers – Lynx Distributor	1pk
Mounting Hardware and Spacers – BEP 770-EZ Switch	1pk
Mounting Hardware and Custom Spacers – Lynx Shunt*	1pk
Lynx Shunt Hardware*	1pk
Mounting Hardware and Spacers – BMV-712 Shunt/SmartShunt*	1pk
*Note: Shunt hardware will vary depending on whether a BMV/SmartShunt or Lynx Shunt is used in the system.

Lynx Distributor (M8) Wiring Kits:

Lynx Distributor (M8) – 4/0 Wire – BMV-712 or SmartShunt

4/0 Red Battery Wire	5ft
4/0 Black Battery Wire	5ft
4/0 x 5/16″ Wire Lugs	4
4/0 x 3/8″ Wire Lugs	2
1″ Red Heat Shrink	4
1″ Black Heat Shrink	2
400 Amp ANL Fuse	1
Heavy Duty ANL Fuse Block – Blue Sea Systems 35A to 750A DC	1
Lynx Adapters	2
Master Disconnect – Blue Sea Systems m-Series 6006	1
18 – 22 AWG Butt Splice Connector	1
Mounting Hardware – Lynx Distributor	1pk
Mounting Hardware and Spacers – BMV-712 Shunt or SmartShunt	1pk
Mounting Hardware – ANL Fuse Holder	1pk
Mounting Hardware – Master Disconnect	1pk

Lynx Distributor (M8) – 4/0 Wire – Lynx Shunt

4/0 Red Battery Wire	5ft
4/0 Black Battery Wire	5ft
4/0 x 5/16″ Wire Lugs	4
4/0 x 3/8″ Wire Lugs	2
1″ Red Heat Shrink	4
1″ Black Heat Shrink	2
400 Amp ANL Fuse	2
Heavy Duty ANL Fuse Block – Blue Sea Systems 35A to 750A DC	1
Master Disconnect – Blue Sea Systems m-Series 6006	1
Lynx Adapters	2
18 – 22 AWG Butt Splice Connector	1
Mounting Hardware – Lynx Distributor	1pk
Mounting Hardware – Lynx Shunt	1pk
Mounting Hardware – ANL Fuse Holder	1pk
Mounting Hardware – Master Disconnect	1pk
*Note: Kit updated to include Lynx Adapters as of 1/21/2025. Kits prior to this date included additional lugs and heat shrink in lieu of the Lynx Adapters.

Lynx Distributor (M8) – 2/0 Wire – BMV-712 or SmartShunt

2/0 Red Battery Wire	5ft
2/0 Black Battery Wire	5ft
2/0 x 5/16″ Wire Lugs	2
2/0 x 3/8″ Wire Lugs	2
3/4″ Red Heat Shrink	2
3/4″ Black Heat Shrink	2
300 Amp MRBF Fuse	1
MRBF 30-300A Terminal Fuse Block	1
Lynx Adapters	2
Master Disconnect – Blue Sea Systems m-Series 6006	1
18 – 22 AWG Butt Splice Connector	1
Mounting Hardware – Lynx Distributor	1pk
Mounting Hardware and Spacers – BMV-712 Shunt or SmartShunt	1pk
Mounting Hardware – Master Disconnect	1pk

Lynx Distributor (M8) – 2/0 Wire – Lynx Shunt

2/0 Red Battery Wire	5ft
2/0 Black Battery Wire	5ft
2/0 x 5/16″ Wire Lugs	4
2/0 x 3/8″ Wire Lugs	2
3/4″ Red Heat Shrink	4
3/4″ Black Heat Shrink	2
300 Amp ANL Fuse	1
300 Amp MRBF Fuse	1
MRBF 30-300A Terminal Fuse Block	1
Lynx Adapters	2
Master Disconnect – Blue Sea Systems m-Series 6006	1
18 – 22 AWG Butt Splice Connector	1
Mounting Hardware – Lynx Distributor	1pk
Mounting Hardware – Lynx Shunt	1pk
Mounting Hardware – Master Disconnect	1pk

*Note: Kit updated to include Lynx Adapters as of 1/21/2025. Kits prior to this date included additional lugs and heat shrink in lieu of the Lynx Adapters.

Lynx Distributor (M8) – 1/0 Wire – BMV-712 or SmartShunt

1/0 Red Battery Wire	5ft
1/0 Black Battery Wire	5ft
1/0 x 5/16″ Wire Lugs	2
1/0 x 3/8″ Wire Lugs	2
3/4″ Red Heat Shrink	2
3/4″ Black Heat Shrink	2
300 Amp MRBF Fuse	1
MRBF 30-300A Terminal Fuse Block	1
Lynx Adapters	2
Master Disconnect – Blue Sea Systems m-Series 6006	1
18 – 22 AWG Butt Splice Connector	1
Mounting Hardware – Lynx Distributor	1pk
Mounting Hardware and Spacers – BMV-712 Shunt or SmartShunt	1pk
Mounting Hardware – Master Disconnect	1pk

Lynx Distributor (M8) – 1/0 Wire – Lynx Shunt

1/0 Red Battery Wire	5ft
1/0 Black Battery Wire	5ft
1/0 x 5/16″ Wire Lugs	4
1/0 x 3/8″ Wire Lugs	2
3/4″ Red Heat Shrink	4
3/4″ Black Heat Shrink	2
300 Amp ANL Fuse	1
300 Amp MRBF Fuse	1
MRBF 30-300A Terminal Fuse Block	1
Lynx Adapters	2
Master Disconnect – Blue Sea Systems m-Series 6006	1
18 – 22 AWG Butt Splice Connector	1
Mounting Hardware – Lynx Distributor	1pk
Mounting Hardware – Lynx Shunt	1pk
Mounting Hardware – Master Disconnect	1pk

*Note: Kit updated to include Lynx Adapters as of 1/21/2025. Kits prior to this date included additional lugs and heat shrink in lieu of the Lynx Adapters.

How to Install a Victron Lynx Distributor:

Wiring Diagrams for Victron Lynx Distributor:

Click to expand Lynx Distributor (M10) Wiring Diagram 4/0 SmartShunt or BMV712:

Click to expand Lynx Distributor (M10) Wiring Diagram 4/0 Lynx Shunt:

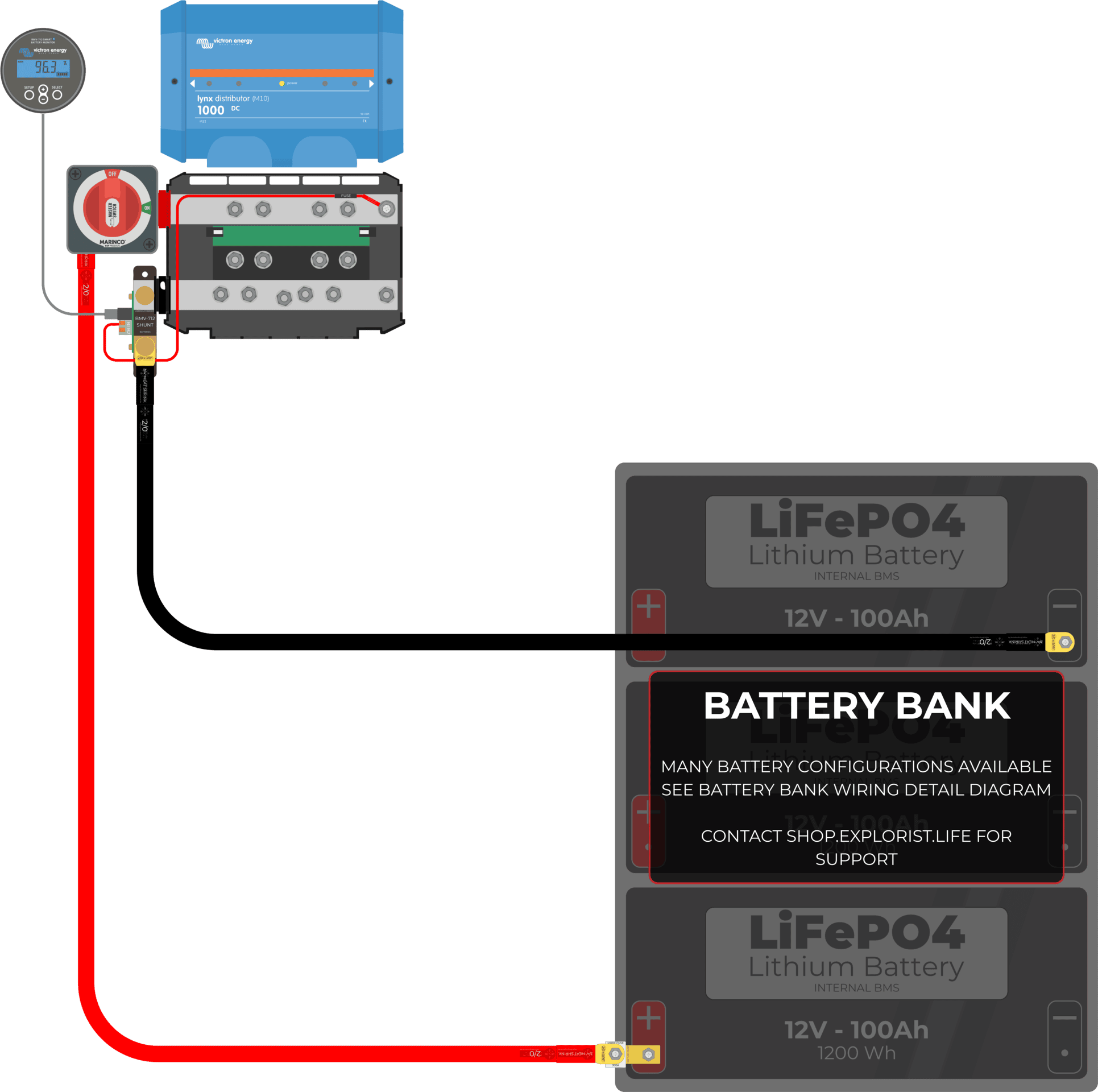

Click to expand Lynx Distributor (M10) Wiring Diagram 2/0 SmartShunt or BMV712:

Click to expand Lynx Distributor (M10) Wiring Diagram 2/0 Lynx Shunt:

Click to expand Lynx Distributor (M10) Wiring Diagram 1/0 SmartShunt or BMV712:

Click to expand Lynx Distributor (M10) Wiring Diagram 1/0 Lynx Shunt:

Lynx Distributor Wiring Kit – 1/0 Lynx Shunt

Lynx Distributor Wiring Kit – 4/0 BMV-712

Detailed Product Information:

4/0 Wire (red and black):
- Size: 0000 gauge (4/0 AWG)
- Type: Fully annealed soft-drawn copper SGR
- Insulation: Highly flexible EPDM
- Temperature Rating: -50°C to +105°C
- Max Voltage: 60V
4/0 x 5/16″ Wire Lug
- Size: 4/0 AWG
- Type: Standard Bare Copper
- Size: 5/16″
4/0 x 3/8″ Wire Lug
- Size: 4/0 AWG
- Type: Standard Bare Copper
- Size: 3/8″
400 Amp ANLFuse
- Current Rating: 400A
- Voltage Rating: 32V
- Type: Bolt Down Fuse
- Terminal: Silver Plated Copper
Blue Sea Systems 6006 m-Series Battery Switch
- 2 Switch Positions
- Max Voltage: 48V
- Amperage Rating: Continuous at 300A. Intermittent of 500A (5 minutes)
Blue Sea Systems 5503 ANL Fuse Block
- Amperage Rating: 35A to 750A
- Max Voltage: 32V
- UL 94-V0
- Tin-Plated Copper Terminals
- Max Cable Size: 4/0 AWG
- Terminal Stud Size: 5/16-18 (M8)

Additional information

Weight	14 lbs
Dimensions	12 × 12 × 6 in
Lynx Distributor Wiring Kit Options	Lynx Distributor (M8) – 4/0 Wire – BMV-712, Lynx Distributor (M8) – 2/0 Wire – BMV-712, Lynx Distributor (M8) – 1/0 Wire – BMV-712, Lynx Distributor (M8) – 4/0 Wire – Lynx Shunt, Lynx Distributor (M8) – 2/0 Wire – Lynx Shunt, Lynx Distributor (M8) – 1/0 Wire – Lynx Shunt, Lynx Distributor (M10) – 4/0 Wire, Lynx Distributor (M10) – 2/0 Wire, Lynx Distributor (M10) – 1/0 Wire
Wiring Kit Application	Distribution Panel, Fuse Panel/Breaker Box

3 reviews for Lynx Distributor Wiring Kit

Rated 5 out of 5

Richard Roberts (verified owner) – March 5, 2024

Excellent kit made for a easy installation. Top quality material. You can spend hours sourcing these items or save your time with this kit. While setting up my system every package was lined up perfect for each task. Thanks guys
Rated 5 out of 5

Christopher Briggs (verified owner) – February 29, 2024

I just received this kit today and I’m ecstatic that I found this company. This kit made it so much easier – it contains quality products and everything you need.
Rated 5 out of 5

Mike (verified owner) – February 27, 2024

I like that the kit comes with everything you need. I added the Lynx Distributor in my order. Watching the related video on how to install this really help to make the project done easily. I used a shunt from a different company instead of the Victron one, but I don’t think it affected on how the system work. I also had post sale questions that was answered really quick through emails. They even added some links to their Youtube videos to make my understanding more effective. Overall, this kit made my first DIY install easy.

Add a review

Lynx Distributor Wiring Kit
