The EXPLORE 400Ah Camper Van Wiring Kit
$8,967.98 – $10,676.50
The EXPLORE Camper Van Wiring Kit is a comprehensive 400Ah 3kVa camper electrical system that includes everything you need to power your camper. From the inverter and batteries all the way down to the lugs and mounting screws, we’ve included it ALL.
Description
The EXPLORE 400Ah Camper Van Wiring Kit
The EXPLORE Camper Van Wiring Kit is a comprehensive 400Ah 3kVa DIY camper electrical system that includes everything you need to power your camper. From the inverter and batteries all the way down to the lugs and mounting screws, we’ve included it ALL.
The EXPLORE Camper Van Wiring Kit includes:
- 400Ah of Battle Born LiFePO4 Batteries
- Victron Multiplus 3kVa 12V Inverter/Charger
- Alternator Charging via Victron Orion-TR 12|12-30 DC-DC Charger
- Solar charging via a Victron SmartSolar MPPT 150|60
- Progressive Dynamics AC and DC Distribution Panels
- and EVERYTHING needed to install these components
See below for the full list of all that is included.
Camper electrical systems are hard. We sweat the small stuff so you don’t have to.
Our EXPLORE Camper Van Wiring Kit includes everything you need to install a robust electrical system in your Camper Van, Expedition Vehicle, or whatever else you need to power. The included high-resolution wiring diagram shows you the exact connections, down to the lug and heat shrink size, for every connection. There is truly not a more comprehensive DIY camper van wiring kit on the market!
A high-resolution wiring diagram along with installation instructions will be emailed to you after your purchase is complete.
Included in the EXPLORE Camper Van Wiring Kit:
INCLUDED COMPONENTS (click to expand)
| INCLUDED COMPONENTS | QTY |
| Victron Multiplus 12/3000/120-50 VE.Bus Inverter/Charger | 1 |
| Battle Born 100Ah 12V LiFePO4 Deep Cycle Battery | 4 |
| Victron Orion-TR 12|12-30 DC-DC Charger | 1 |
| Victron Lynx Distributor | 1 |
| Victron BMV-712 Battery Monitor | 1 |
| Victron SmartSolar MPPT 150|60 | 1 |
| 12V DC Fuse Panel – Progressive Dynamics | 1 |
| 120V AC Distribution Panel – Progressive Dynamics | 1 |
| Victron VE.Bus Smart Dongle | 1 |
| Victron RJ45 UTP Cable – 0,3m | 1 |
| Solar Isolator Disconnect | 1 |
| 30 Amp Shore Power Inlet (Black) | 1 |
| Blue Sea 5503 ANL Fuse Block | 1 |
| Blue Sea m-6006 Master Disconnect Switch | 1 |
INCLUDED WIRING (click to expand)
| COMPONENT | QTY |
| 4/0 AWG SGR Battery Wire – Red | 13ft |
| 4/0 AWG SGR Battery Wire – Black | 23ft |
| 2 AWG SGR Battery Wire – Red | 5ft |
| 2 AWG SGR Battery Wire – Black | 8ft |
| 6 AWG SGX Battery Wire – Red | 40ft |
| 6 AWG SGX Battery Wire – Black | 40ft |
| 6/3 SOOW Triplex Wire – Black | 10ft |
| 10 AWG Triplex Marine Wire | 10ft |
| 10 AWG PV Solar Wire – Black | 50ft |
| 10 AWG PV Solar Wire – Red | 50ft |
INCLUDED FUSES & BREAKERS (click to expand)
| COMPONENT | QTY |
| 400 Amp ANL Fuse | 1 |
| 400 Amp MEGA Fuse | 1 |
| 50 Amp HOM Breaker | 1 |
| 100 Amp MEGA Fuse | 1 |
| 80 Amp MEGA Fuse | 1 |
| 60 Amp MEGA Fuse | 1 |
INCLUDED LUGS, FERRULES, ETC. (click to expand)
| COMPONENT | QTY |
| 4/0 x 5/16″ Wire Lug | 24 |
| 4/0 x 3/8″ Wire Lug | 2 |
| 2 AWG x 5/16″ Wire Lug | 3 |
| 2 AWG x 1/4″ Wire Lug | 1 |
| 2 AWG Ferrule | 2 |
| 6 AWG x 5/16″ Wire Lug | 6 |
| 6 AWG Insulated Ferrule | 8 |
| 6 AWG Non-Insulated Ferrule | 4 |
| 10 AWG Insulated Ferrule | 3 |
| 10 AWG Non-Insulated Ferrule | 2 |
| 18 – 22 AWG Butt Splice Connector | 1 |
INCLUDED CONNECTORS, GLANDS, ETC. (click to expand)
| COMPONENT | QTY |
| PG29 Cable Gland | 1 |
| M25 Wire Glands | 2 |
| Solar Grommet | 1 |
| Roof Entry Gland | 1 |
| Lynx Adapters | 1 pair |
INCLUDED HEAT SHRINK (click to expand)
| COMPONENT | QTY |
| 1″ Black Heat Shrink | 15 pcs |
| 1″ Red Heat Shrink | 12 pcs |
| 3/4″ Black Heat Shrink | 4 pcs |
| 3/4″ Red Heat Shrink | 2 pcs |
| 1/2″ Black Heat Shrink | 5 pcs |
| 1/2″ Red Heat Shrink | 5 pcs |
| 3/8″ Black Heat Shrink | 1 pc |
| 3/8″ Red Heat Shrink | 1 pc |
INCLUDED MOUNTING SCREWS/HARDWARE (click to expand)
| COMPONENT | QTY |
| AC Panel Mounting Hardware | 1 pk |
| ANL Fuse Holder Mounting Hardware | 1 pk |
| Charge Controller Mounting Hardware | 1 pk |
| Chassis Ground Hardware | 1 pk |
| DC Panel Mounting Hardware | 1 pk |
| Lynx Distributor Mounting Hardware | 1 pk |
| Master Disconnect Mounting Screws and Spacers | 1 pk |
| Multiplus Mounting Hardware | 1 pk |
| Orion-TR Smart Charger Mounting Hardware | 1 pk |
| Shore Power Inlet Mounting Hardware | 1 pk |
| Shunt (BMV) Mounting Screws and Spacers | 1 pk |
| Solar Isolator Mounting Hardware | 1 pk |
WHEW! That’s a lot…
But it is absolutely everything you need to install your camper electrical system. And even better, you won’t have a bunch of left over random parts that you’ll never use. We cut the waste so you can save time, money, and worry.
You get all of this in clearly labeled bags to help you stay organized during your camper electrical installation.
Options for Monitoring
The EXPLORE Camper Van Wiring Kit by default includes monitoring with a Cerbo GX and Touch 50 screen. You have the option to remove this monitoring.

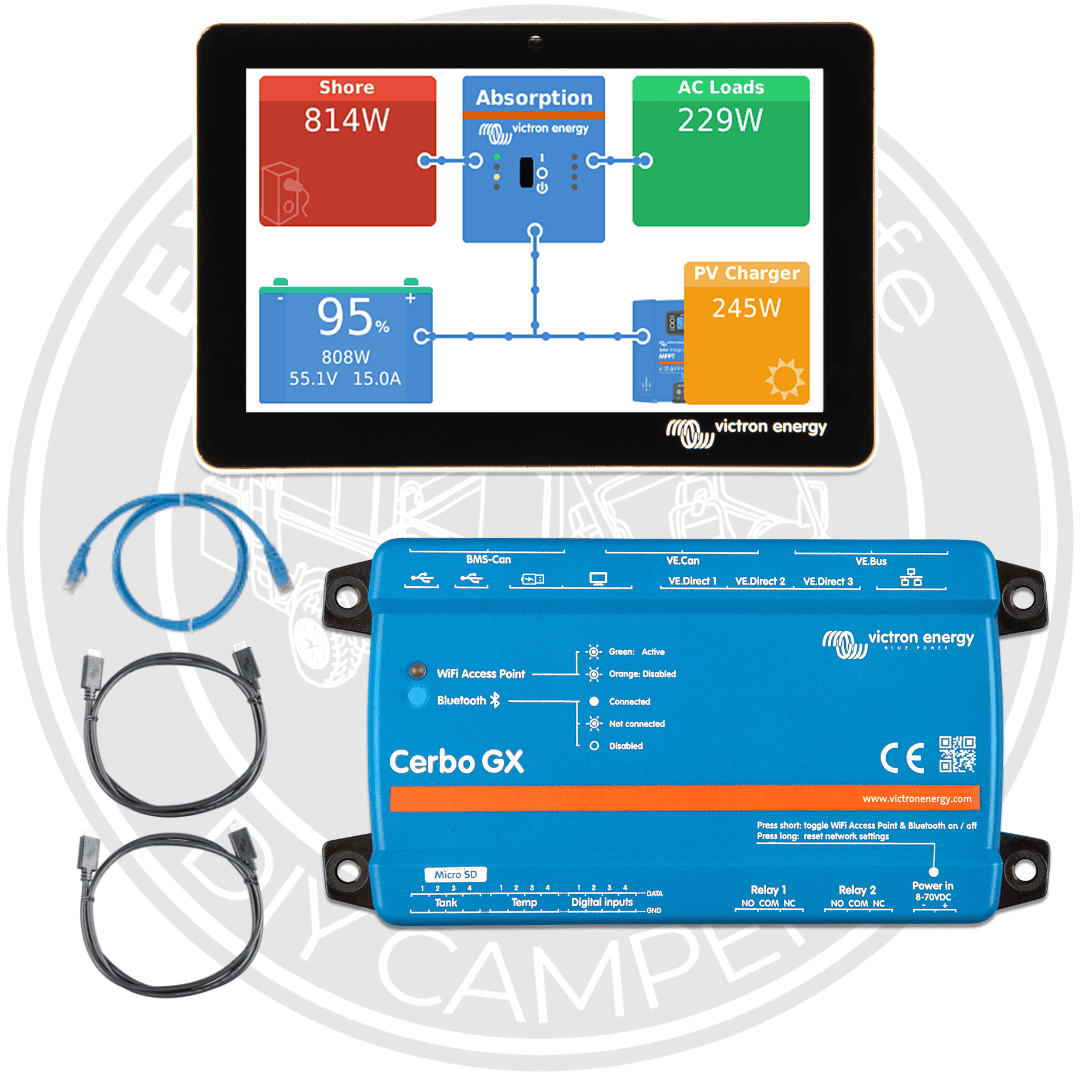

OPTIONAL MONITORING WITH CERBO GX (click to expand)
| COMPONENT | QTY |
| Victron Cerbo GX | 1 |
| Victron GX Touch 50 | 1 |
| Victron GX Touch 50 Wall Mount | 1 |
| Victron RJ45 UTP Cable – 3m | 1 |
| Victron VE.Direct Cable – 3m | 2 |
| TOTAL OPTIONAL MONITORING | $572.05 |
Solar Array Options
The EXPLORE Camper Van Wiring Kit is designed to work with an 800W solar array. The default kit includes connections for 4x200W Rich Solar Monocrystalline Solar Panels. However, if you have a different array need, select from the following options.
SOLAR ARRAY OPTIONS (click to expand)

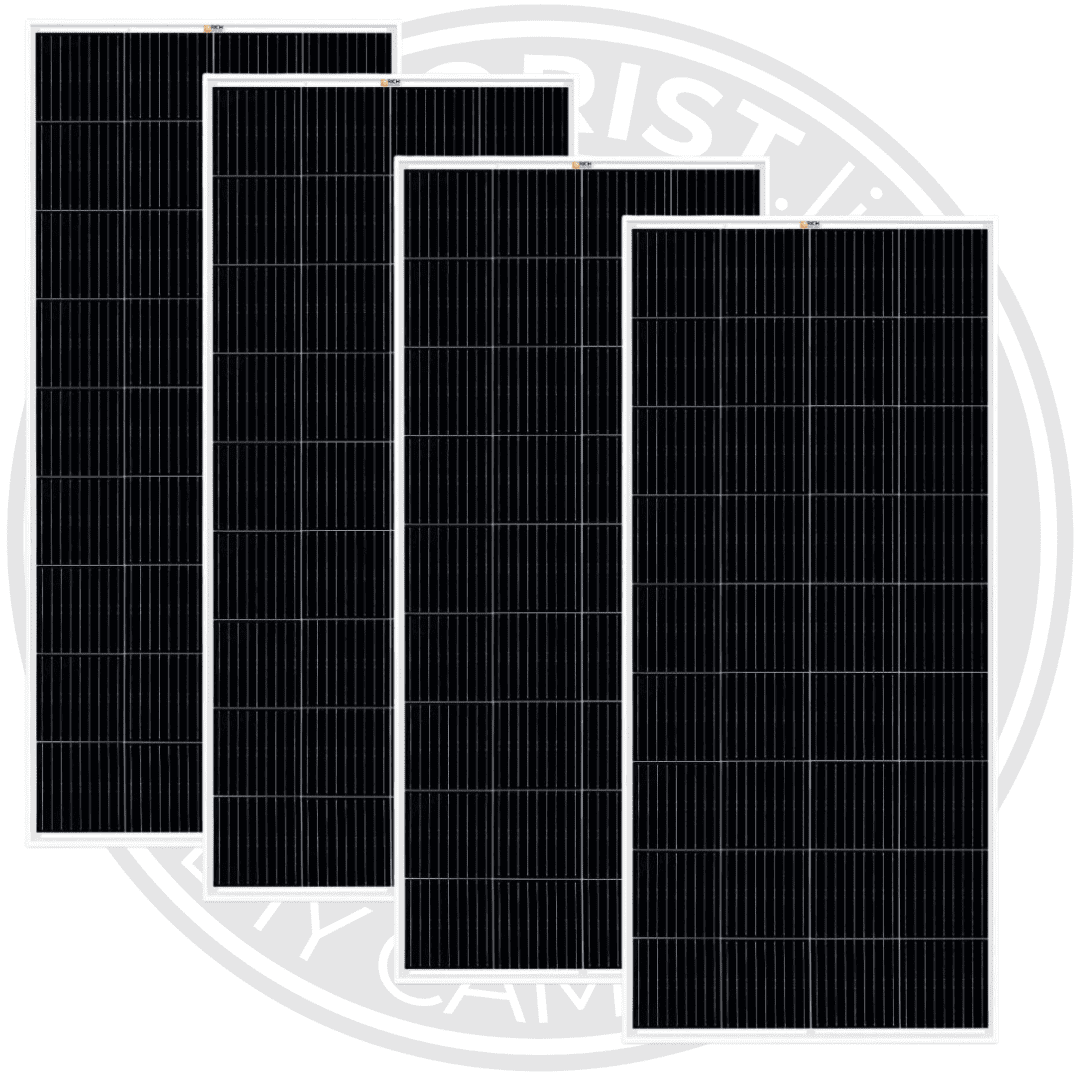

RICH SOLAR 200W PANELS X 4
| COMPONENT | QTY |
| Rich Solar MEGA 200W 12V Monocrystalline Solar Panel | 4 |
| Default Selections | |
| TOTAL Rich Solar 200W Panels x 4 | $879.96 |

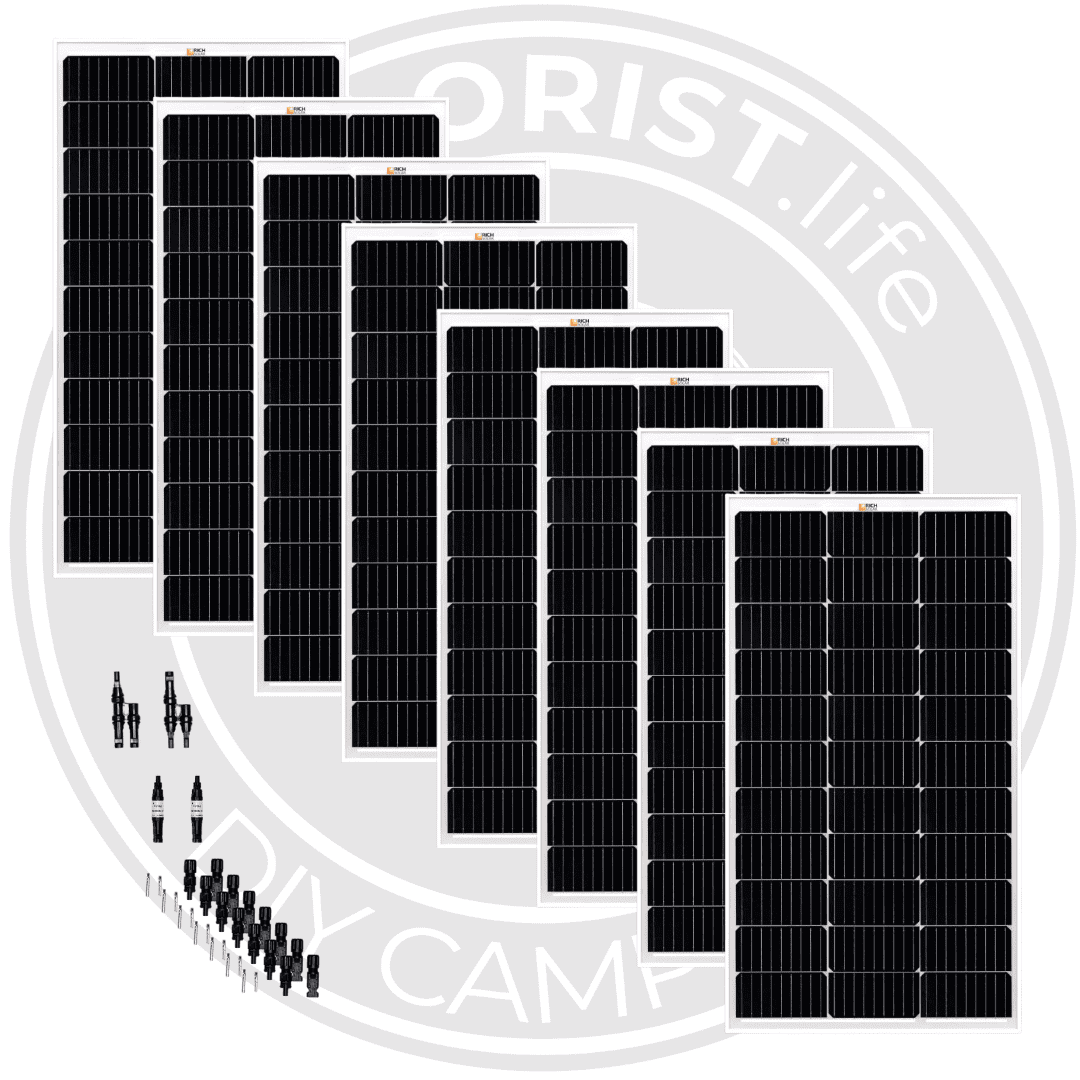

RICH SOLAR 100W PANELS X 8
| COMPONENT | QTY |
| Rich Solar MEGA 100W 12V Monocrystalline Solar Panel | 1 |
| Additional PV Connectors | 7 |
| 2-to-1 PV Branch Connector | 1 |
| 10A PV Fuse | 2 |
| TOTAL Rich Solar 100W Panels x 8 | $938.32 |
DIY Camper Van Electrical System Installation Tutorial:
Additional information
| Weight | 500 lbs |
|---|---|
| Dimensions | 18 × 18 × 18 in |
| Monitoring | Cerbo GX + Touch 50 (default), Cerbo GX + Touch 70 (+$118.15), No Cerbo GX (-$572.05) |
| Solar Panel Options | Rich Solar 4x200W (default), Rich Solar 8x100W (+58.36), No Solar Panels (-$879.96) |
