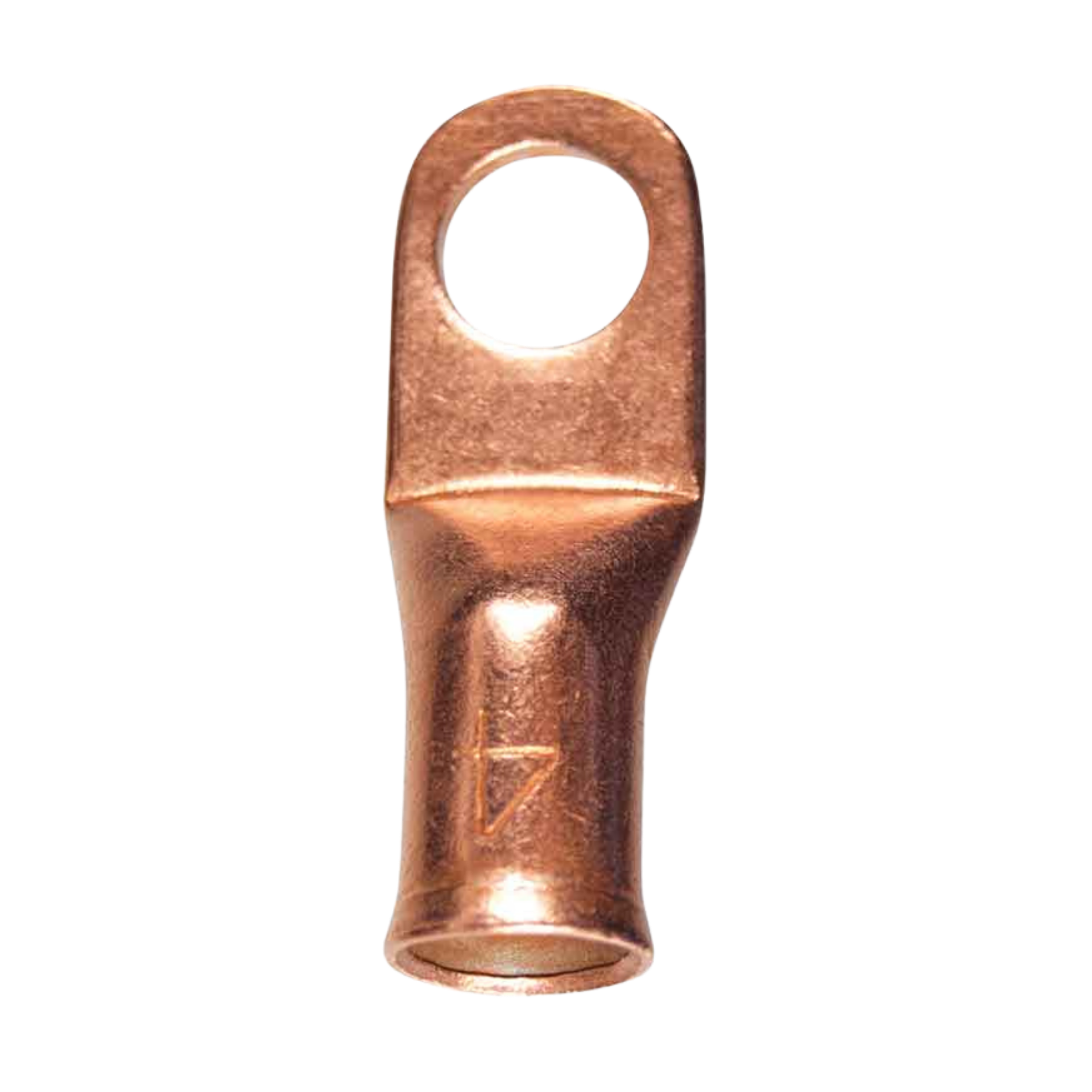

Bare Copper Lugs

Description

Bare Copper Lugs provide a reliable and efficient solution for terminating large-gauge power cables in 12V, 24V, and high-current electrical systems. Manufactured from high-conductivity bare copper, these lugs deliver excellent electrical performance while allowing for secure connections to bus bars, batteries, inverters, fuse blocks, and other power distribution components.

Designed for use with stranded copper wire, each lug features a seamless barrel construction for maximum strength and conductivity. The closed-end design helps keep moisture out of the cable termination, while the heavy-duty copper construction supports dependable performance in demanding mobile, marine, RV, van conversion, and off-grid applications.

Available in multiple wire gauge and stud size combinations to match a wide range of system requirements.

Technical Specifications

• Material: Bare Copper
• Wire Compatibility: Stranded Copper Cable
• Construction: Seamless Barrel
• Terminal Type: Wire Lug
• Mounting Hole Sizes: 1/4″, 5/16″, 3/8″
• Wire Sizes Available: 6 AWG to 4/0 AWG
