Andy Rawls Airstream/Argosy 400Ah – 3k 12V Inverter – 800W Solar
From: $0.00
This DIY electrical system can be customized to your needs. The default selections are the selections as shown in the video tutorial. Batteries are not included and should be selected separately.
Click the arrow next to each kit name for specifics on what is included in the kit.
Description
This is the complete DIY Camper Electrical Wiring Kit shown in the Andy Rawls Airstream/Argosy YouTube Project shown below. We installed 400Ah of Battle Born Batteries with 800W Solar and a Victron MultiPlus 12/3000/120-50 120V Inverter Charger.
BATTERY OPTIONS:
The following battery options are suitable for this system . The required minimum quantity is listed below:
| COMPONENT | QUANTITY | LINK TO BUY |
| Suitable Battery Options (minimum 400Ah required): | ||
| Battle Born 100Ah 12V LiFePO4 Deep Cycle Battery | 4+ | CLICK HERE TO BUY |
| Battle Born 100Ah GC2 12V LiFePO4 Deep Cycle Battery | 4+ | CLICK HERE TO BUY |
| Battle Born 270Ah 12V LiFePO4 Deep Cycle GC3 Battery | 2+ | CLICK HERE TO BUY |
| Battle Born 270Ah 12V LiFePO4 Deep Cycle Heated GC3 Battery | 2+ | CLICK HERE TO BUY |
INSTALLATION TUTORIAL:
This is the complete DIY camper electrical wiring kit as shown in the following video:
This project was done in collaboration with Andy Rawls on his custom 1976 Argosy camper and includes 400Ah of Battle Born Batteries, a Victron MultiPlus 12/3000/120-50 120V Inverter/Charger, and 800W Solar.
Additional information

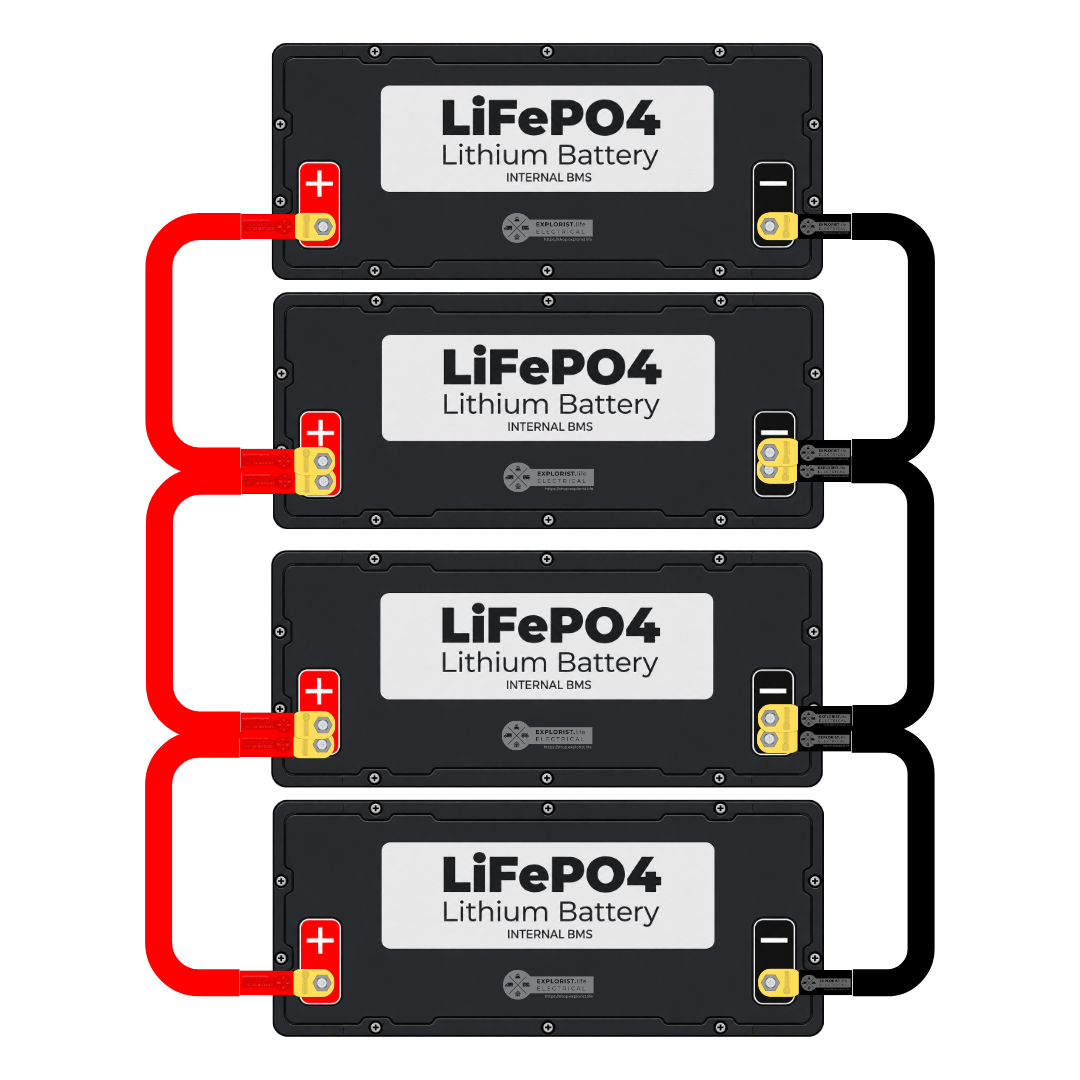

Battery Bank Wiring Kit
| Weight | 9.5 lbs |
|---|---|
| Dimensions | 10 × 10 × 2 in |
| Select Your Battery Bank | 6 Batteries – 4/0 Wire – 12V Battery Bank Wiring Kit, 4 Batteries – 4/0 Wire – 12V Battery Bank Wiring Kit |
| Wiring Kit Application | Battery Bank |

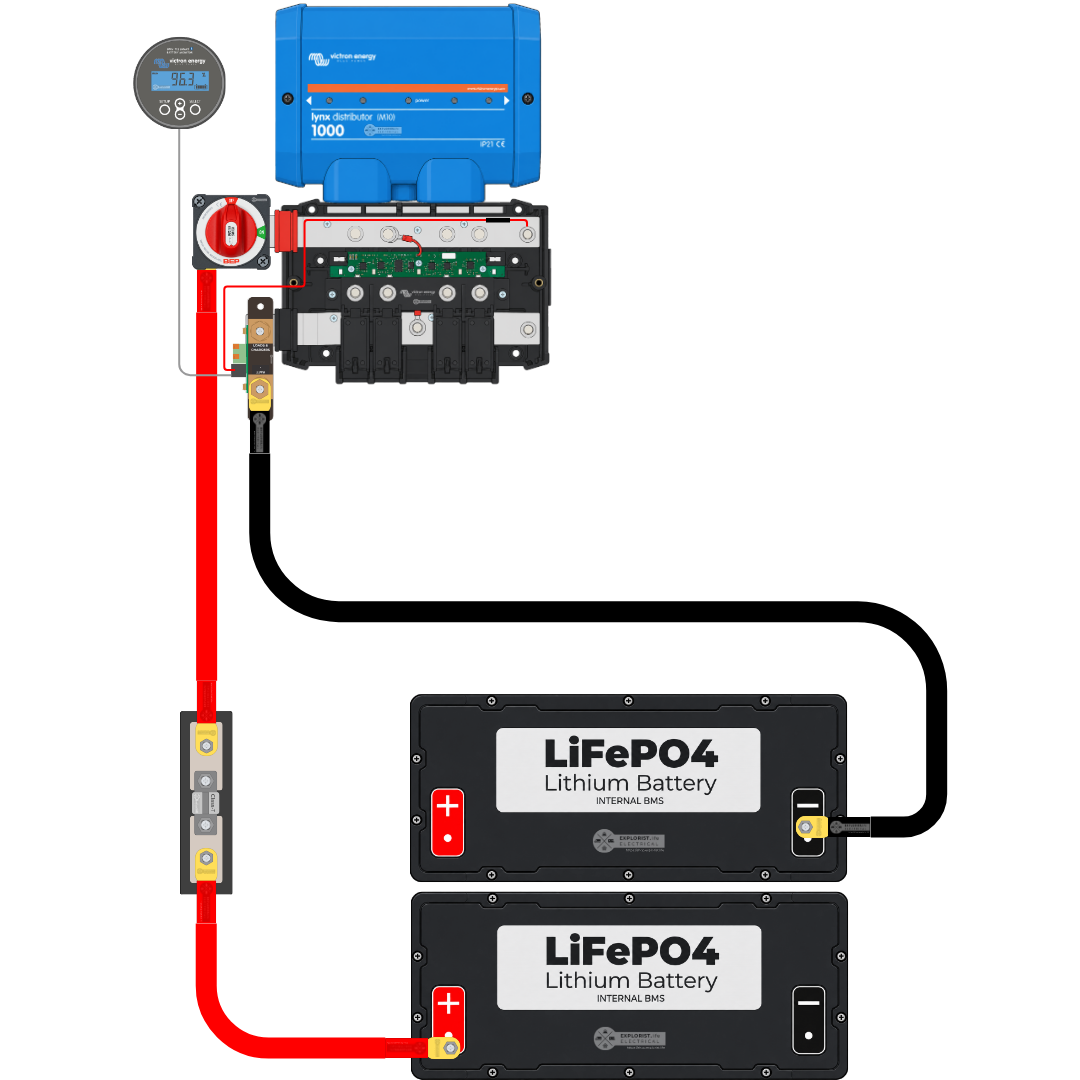

Lynx Distributor Wiring Kit
| Weight | 14 lbs |
|---|---|
| Dimensions | 12 × 12 × 6 in |
| Lynx Distributor Wiring Kit Options | Lynx Distributor – 4/0 Wire – BMV-712, Lynx Distributor – 4/0 Wire – Lynx Shunt |
| Wiring Kit Application | Distribution Panel, Fuse Panel/Breaker Box |
Victron Lynx Distributor (M8)
| Weight | 5 lbs |
|---|---|
| Dimensions | 16 × 7.5 × 3.5 in |
Inverter/Charger Wiring Kit
| Weight | 13 lbs |
|---|---|
| Dimensions | 10 × 10 × 4 in |
| Select Your Inverter/Charger: | Victron MultiPlus 12/3000/120-50 120V |
| Wiring Kit Application | Inverter/Charger |
Victron Multiplus 12/3000 120-50 120V (UL Listed)
| Weight | 40 lbs |
|---|---|
| Dimensions | 14.3 × 10.2 × 8.6 in |
| Shore Power Amperage | 30A |
| Battery Bank Voltage | 12V |
| Programming | Battle Born LiFePO4 Batteries (+$60.00), Dakota LiFePO4 Batteries (+$60.00), EG4 LiFePO4 Batteries (+$60.00), Epoch LiFePO4 Batteries (+$60.00), Expion 360 LiFePO4 Batteries (+$60.00), Relion LiFePO4 Batteries (+$60.00), Renogy LiFePO4 Batteries (+$60.00), Rich Solar LiFePO4 Batteries (+$60.00), Victron Smart NG LiFePO4 Batteries (+$60.00), Other/Semi-Universal LiFePO4 Batteries (+$60.00), Self Programmed – ADD Interface MK3-USB-C (+59.50), Unprogrammed (+$0.00) |
120V AC Distribution Panel Wiring Kit
| Weight | 8 lbs |
|---|---|
| Dimensions | 10 × 10 × 4 in |
| Choose Your Wire Length: | 10ft, 15ft |
| Choose Your Inverter/Charger Type | MultiPlus, Quattro, Multiplus-II 2x120V |
| Wiring Kit Application | Fuse Panel/Breaker Box |
120V AC Distribution Panel
| Weight | 3 lbs |
|---|---|
| Dimensions | 12 × 10 × 4 in |
| Max Amperage Output | 50A |
12V DC Fuse Panel
| Weight | 2 lbs |
|---|---|
| Dimensions | 10 × 5 × 2 in |
12V DC Fuse Panel Wiring Kit
| Weight | 3 lbs |
|---|---|
| Dimensions | 10 × 10 × 2 in |
| Choose Your Kit: | 12V Fuse Panel Kit – 10ft, 12V Fuse Panel Kit – 15ft, Second Fuse Panel Add-On Kit – 15ft, Second Fuse Panel Add-On Kit – 20ft |
| Wiring Kit Application | Fuse Panel/Breaker Box |
Victron SmartSolar MPPT 150|70
| Weight | 7.5 lbs |
|---|---|
| Dimensions | 11 × 10 × 5.5 in |
| Max Input Voltage | 150V |
| Max Amperage Output | 70A |
| Battery Bank Voltage | 12V, 24V, 36V, 48V |
| Max Wire Size | 2 AWG |
Victron SmartSolar MPPT 150|70 Wiring Kit
| Weight | 4 lbs |
|---|---|
| Dimensions | 10 × 10 × 2 in |
Solar Array Wiring Kit (Single/Dual/Ground Deploy Array Options)
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 10 × 10 × 4 in |
| Choose Your Array Type: | Single Roof Array, Dual Roof Array, Roof and Ground Deploy Arrays, Single Roof Array for OEM Solar Ready, Add-On Ground Deploy Array, Add-On 2nd Roof Array |
| Wiring Kit Application | Solar Array |
10 AWG Solar Wire
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 10 × 10 × 0.1 in |
| Feet | 10 ft., 20 ft., 30 ft., 40 ft., 50 ft., 60 ft., 70 ft., 80 ft., 90 ft., 100 ft. |
PV Connector
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 4 × 1 × 1 in |
2-to-1 PV Branch Connector
| Weight | 0.3 lbs |
|---|---|
| Dimensions | 3 × 5 × 1 in |
Rich Solar Mega 100 Watt 12 Volt Solar Panel
| Weight | 15.5 lbs |
|---|---|
| Dimensions | 39 × 21.3 × 1.2 in |
| Solar Panel Wattage | 100W |
Chassis Ground Wire Kit
| Weight | 4.5 lbs |
|---|---|
| Dimensions | 10 × 10 × 2 in |
| Select Your Ground Wire Size: | 4/0 AWG, 2/0 AWG, 1/0 AWG |
| Wiring Kit Application | Chassis Ground |
30 Amp Shore Power Wiring Kit – Black Inlet
| Weight | 2 lbs |
|---|---|
| Dimensions | 6 × 6 × 4 in |
| Select Your Inverter/Charger: | MultiPlus |
| Wiring Kit Application | Shore Power |
30 Amp Shore Power Cord - 25'
| Weight | 7.5 lbs |
|---|---|
| Dimensions | 11 × 11 × 4 in |
15 Amp to 30 Amp Power Adapter Plug
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 3 × 3 × 3 in |
Victron BMV-712 Battery Monitor (Black)
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 8 × 2 in |
Victron VE.Bus Smart Dongle
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 5 × 3 × 2 in |
Victron RJ45 UTP Cable
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 6 × 4 in |
| Length | 0,3m, 0,9m, 1,8m, 3m, 5m, 10m |
Airstream Solar Wiring Diagram (Andy Rawls Argosy Project) - High Res Wiring Diagram
| Application | YouTube Project – Airstream |
|---|---|
| Inverting Capacity | 3000 VA |
| Shore Power Amperage | 30A |
