Phoenix Inverter Wiring Kit

Description

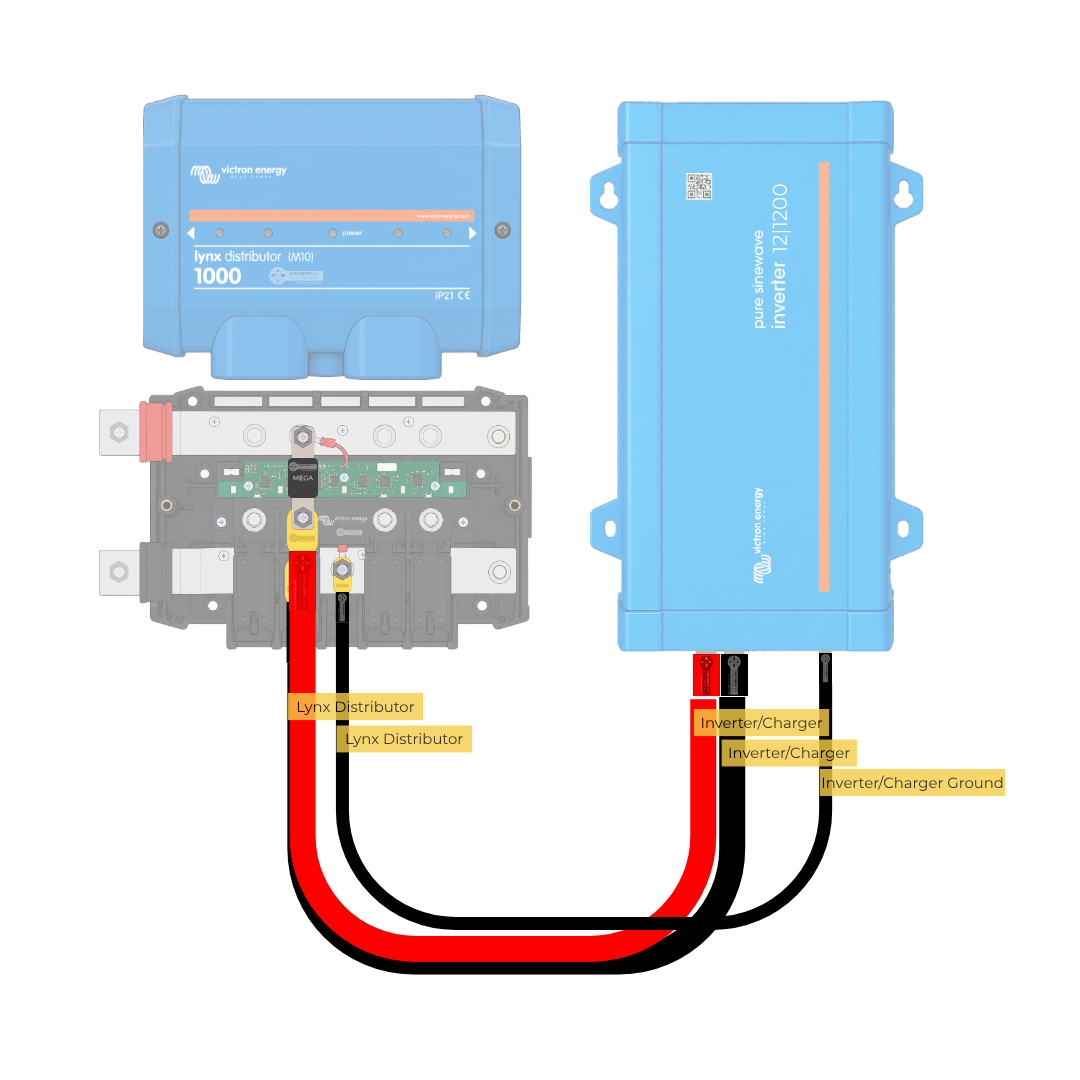

This wiring kit includes everything you need to connect a Victron Phoenix Inverter to a Victron Lynx Distributor. Victron Inverters are not included, but can be purchased here.

---

Kit Contents:

Phoenix Inverter 12/1200 120V Wiring Kit

Component	QTY
2 AWG SGR Battery Wire (Red)	5ft
2 AWG SGR Battery Wire (Black)	5ft
6 AWG SGX Battery Wire (Black)	5ft
2 AWG x 5/16″ Wire Lug	2
6 AWG x 5/16″ Wire Lug	1
2 AWG Ferrule	2
6 AWG Ferrule	1
3/4″ Red Heat Shrink	2
3/4″ Black Heat Shrink	2
1/2″ Black Heat Shrink	2
200 Amp MEGA Fuse	1
#10 x 3/4″ Panhead Sheet Metal Screw	4

Phoenix Inverter 12/800 120V Wiring Kit

Component	QTY
6 AWG SGX Battery Wire (Red)	5ft
6 AWG SGX Battery Wire (Black)	10ft
6 AWG x 5/16″ Wire Lug	3
6 AWG Ferrule	3
1/2″ Black Heat Shrink	4
1/2″ Red Heat Shrink	2
100 Amp MEGA Fuse	1
#10 x 3/4″ Panhead Sheet Metal Screw	4

Phoenix Inverter 12/500 120V Wiring Kit

Component	QTY
6 AWG SGX Battery Wire (Red)	5ft
6 AWG SGX Battery Wire (Black)	10ft
6 AWG x 5/16″ Wire Lug	3
6 AWG Ferrule	3
1/2″ Black Heat Shrink	4
1/2″ Red Heat Shrink	2
100 Amp MEGA Fuse	1
#10 x 3/4″ Panhead Sheet Metal Screw	4

---

Product Information:

Click for Details

• 2 AWG SGR Wire (red and black):
  • Size: 2 gauge (2 AWG)
  • Type: Fully annealed soft-drawn copper SGR
  • Insulation: Highly flexible EPDM
  • Temperature Rating: -50°C to +105°C
  • Max Voltage: 60V
• 6 AWG SGX Wire (red and black)
  • Type: Bare Copper Stranded SGX
  • Wire Insulation Type: XLPE
  • Temperature Rating: -40°C to +90°C
  • Max Voltage: 60V DC
• 2 AWG 5/16″ Wire Lug
  • Size: 2 AWG
  • Type: Standard Bare Copper
  • Size: 5/16″
• 6 AWG x 5/16″ Wire Lug
  • Size: 6 AWG
  • Type: Standard Bare Copper
  • Size: 5/16″
• 2 AWG Ferrule
  • Size: 2 gauge (2 AWG)
  • Type: Tin-Plated Copper
  • Max Voltage : 600V
  • Temperature Rating: 302°F (150°C)
• 6 AWG Ferrule
  • Size: 6 gauge (AWG)
  • Type: Tin Plated Copper
  • Max Voltage: 600V
  • Temperature Rating: 105°C
• 200A MEGA Fuse
  • Current Rating: 200A
  • Voltage Rating: 80V
  • Type: Bolt Down Fuse
  • Terminal: Copper
• 400 Amp MEGA Fuse
  • Current Rating: 400A
  • Voltage Rating: 32V
  • Type: Bolt Down Fuse
  • Terminal: Copper
• 100 Amp Amp MEGA Fuse
  • Current Rating: 100A
  • Voltage Rating: 80V
  • Type: Bolt Down Fuse
  • Terminal: Copper
