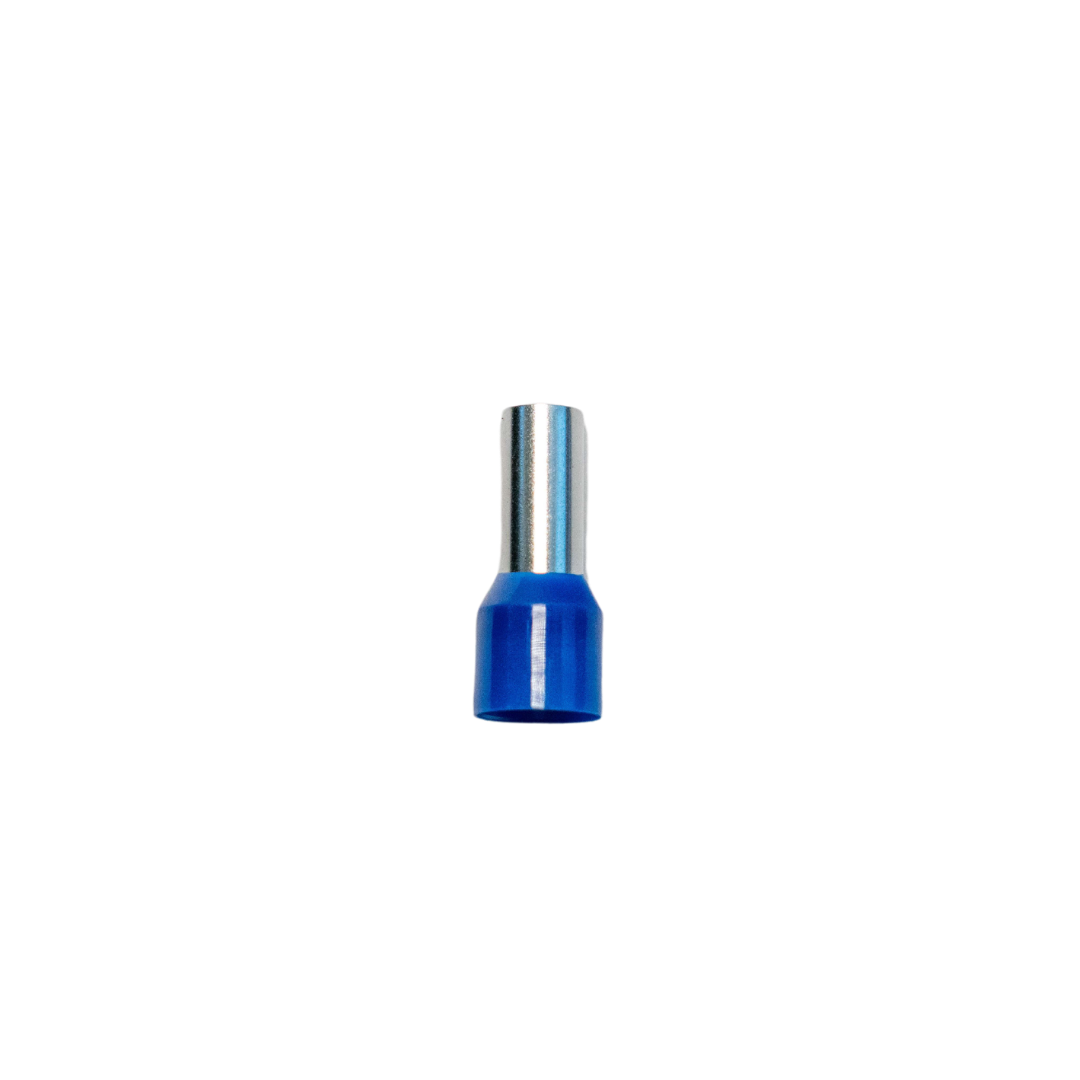

Insulated Ferrules
Price range: $0.19 through $0.29
Insulated tin-plated copper wire ferrules for clean, secure termination of stranded copper wire. Available in 10 AWG and 6 AWG, featuring a 12mm pin and protective insulation collar. UL Recognized and sold individually.
Description
Insulated Wire Ferrules provide a clean, secure solution for terminating stranded copper wires in electrical systems. Manufactured from tin-plated copper with a protective plastic insulation collar, these ferrules consolidate individual wire strands into a solid termination, helping prevent fraying while providing reliable connections to terminal blocks, breakers, and other electrical components.
Designed for use with stranded copper wire, each ferrule features a metal sleeve that is crimped over the conductor to keep wire strands together. The insulated collar helps guide the wire into the ferrule, while the tin-plated copper construction provides excellent electrical conductivity and corrosion resistance. These ferrules are ideal for RV, marine, van conversion, and off-grid electrical applications.
Available in 10 AWG and 6 AWG sizes to accommodate a variety of electrical system requirements.
Technical Specifications
- Material: Tin-Plated Copper with Plastic Insulation Collar
- Wire Compatibility: Stranded Copper Wire
- Construction: Single Insulated
- Terminal Type: Wire Ferrule
- Installation Method: Crimp-On
- Wire Sizes Available: 10 AWG, 6 AWG
- Pin Length: 12mm (0.47″)
- Maximum Electrical Rating: 600V
- UL Recognized: Yes
- CE Certified: Yes
- RoHS Compliant: Yes
- REACH Compliant: Yes
- Quantity: Sold Individually
