Description
The EXPLORE Pre-Assembled Power System is the ultimate all-in-one solution for off-grid energy needs. Designed for simplicity and performance, this pre-built power system eliminates the guesswork and technical challenges of assembling a robust electrical setup. Get your electrical system done in a day rather than a month!
This system is compatible with Sprinters and Transits. For Promasters or other campers, please contact us.
Beautifully constructed by Featherbuilt from durable plywood and high-end hardware, this cabinet offers a premium solution for your mobile electrical needs. Choose from three stylish finishes: White Laminate, Natural Plywood, or Black Hex Plywood, each adding a unique touch to your camper van interior.
Elevate your camper van’s functionality and organization with the EXPLORE Van Electrical System Enclosure by Featherbuilt – where design meets durability, and van building becomes more accessible.
Pre-Assembled for Convenience
The EXPLORE system comes fully pre-wired, pre-programmed, and pre-tested on a professional-grade panel, ready to install with just basic hand tools—no specialty tools or electrical expertise required. Simply mount, connect to your power sources (solar, alternator, or shore), and you’re good to go.
Ships via Freight. Please allow 4-6 weeks processing/build time before shipment. Batteries will be shipped separately and will need to be installed upon receipt. Pre-made battery cables will be included.
Key Features
Victron Energy 3000VA Inverter/Charger
Seamlessly powers your AC devices with clean, reliable energy and recharges your batteries when connected to shore power.
400Ah Battle Born Lithium Batteries
High-capacity, long-lasting energy storage to keep your devices powered throughout your adventures.
50A Alternator Charging
The Victron Orion XS 12-12 |50 DC-DC Charger efficiently charges your battery bank while driving, so you’re always charged up and ready for the next stop.
Bluetooth Monitoring with VictronConnect
Keep track of your system’s performance in real-time directly from your smartphone. Monitor battery levels, inverter status, charging rates, and more with the intuitive VictronConnect app.
Built-In 120V Outlet
The side of the box includes a convenient 120V outlet, allowing you to plug in and power small appliances or tools directly from your system without needing extra wiring.
Expandable 120V Circuits
Includes 3 additional 120V circuits in the built-in breaker box, ready for you to wire and power outlets, appliances, or other AC devices throughout your setup.
SmartSolar MPPT 150|60 Charge Controller
Maximizes energy harvest from your solar panels, ensuring your batteries stay charged even on cloudy days (Solar panels not included).
Designed and Built by Professionals
Housed in a durable, space-efficient cabinet crafted by experts in cabinetry and built by our professional electrical installation team, this system is optimized for both functionality and aesthetics.
Integrated 12V USB Outlet
Charge your devices with ease using the built-in dual USB 3.0 and USB-C outlet, perfect for keeping your phones, tablets, or other USB-powered gear ready to go.
Expandable 12V Circuits
The integrated 12V fuse panel offers 17 extra circuits, giving you plenty of flexibility to wire lights, fans, pumps, or other DC devices for a fully customized system.
Pre-Installed Components Included:
- Victron MultiPlus-II 12/3000/120-50 120V Inverter/Charger
- Victron Lynx Distributor (M8)
- Victron BMV-712 Monitoring
- Victron VE.Bus Smart Dongle
- Progressive Dynamics 120V AC Distribution Panel w/ 50A Main Breaker
- 2 x 20A Tandem Breakers for up to 4 120V Branch Circuits
- Note: 1 circuit pre-wired to the 120V outlet on the side of the box.
- Progressive Dynamics 12V DC Fuse Panel
- Note: 1 circuit pre-wired to the 12V USB/USB-C outlet on the side of the box.
- Victron SmartSolar MPPT 150|60 Solar Charge Controller
- Victron Orion XS 12V-12V | 50A Non-Isolated DC-DC Charger
- 2-Pole Solar Isolator Breaker
- Blue Sea M-6006 Battery Disconnect Switch
- Blue Sea ANL Fuse Holder with Insulating Cover
- Proper sized fuses, wires, and connectors pre-installed on the above components.
Included Components (to be installed by you):
30A Shore Power Inlet
Mount the 30A Shore Power Inlet on your camper and connect the pre-stripped 10/3 Triplex Wire to it.
Solar Roof Entry Gland
Drill a 1″ hole for the Solar Roof Entry Gland, secure it, and run the solar cables through the grommet.
60A DC Circuit Breaker
Install the 60A DC Circuit Breaker near your vehicle’s starting battery and connect the wires to the battery.
Batteries & Battery Interconnect Wires
Place the batteries in the compartment and strap them down to keep them secure, connecting them with the included pre-made interconnect wires.
30A Shore Power Cord (25 feet)
The 30A Shore Power Cord connects your camper to a standard 30A power source, delivering reliable AC power to your system for charging your batteries and powering devices.
15A-30A Shore Power Adapter Plug
The 15A-30A Shore Power Adapter Plug lets you connect to regular household outlets when a 30A outlet isn’t available, giving you maximum flexibility to charge and power up wherever you are.
Installation Information:
Click To Expand
Installation instruction booklet to be provided in your shipment for step-by-step installation instructions. Installation step overview below:
For this installation, you will need basic hand tools, such as:
- Sockets/Wrenches
- Screwdrivers
- Drill
- Impact Driver
- 1″ Hole Saw or Step Bit
Installation steps:
- Install 30A Shore Power Inlet on your camper. Attach the pre-stripped 10/3 Triplex Wire to the Shore Power Inlet.
- Install Solar Roof Entry Gland and grommet using a 1″ hole saw or step bit.
- Install the 60A DC Circuit Breaker near the vehicle’s starting battery and connect the positive and negative wires to the starting battery.
- Place the batteries inside the battery compartment and secure them to the enclosure
- Connect the battery interconnect cables using the supplied wires.
- Connect the supplied positive and negative wires to the opposite ends of the battery bank.
- Turn on the master disconnect swtich.
Product Information:

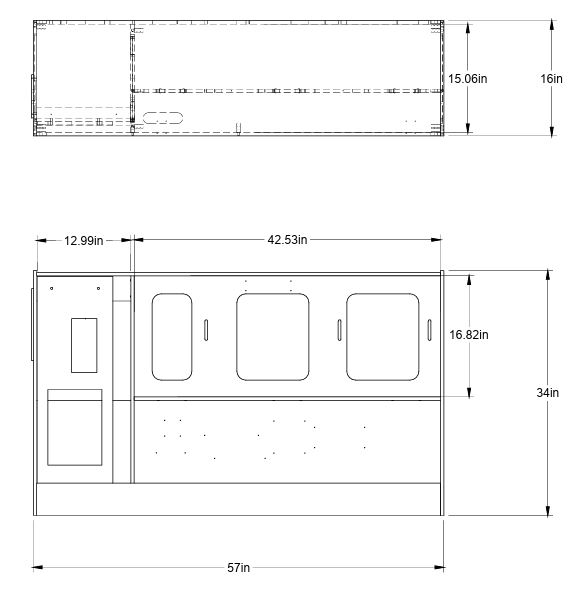

- Cabinet Dimensions: 57″ Wide x 29.5″ Tall x 15.5″ Deep

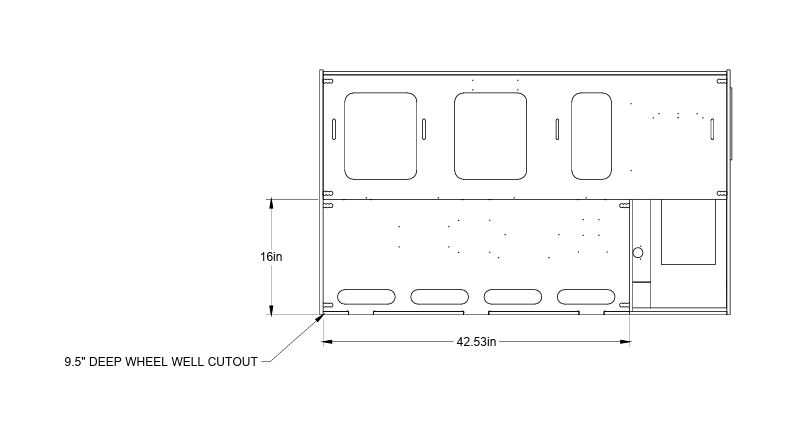

- Wheel Well Cutout: 45.5″Wide x 12.5″ Tall x 9.5″ Deep
- Driver’s side mounting in Sprinters and Transits
- Material: White Laminate, Natural Plywood, or Black Hex Plywood

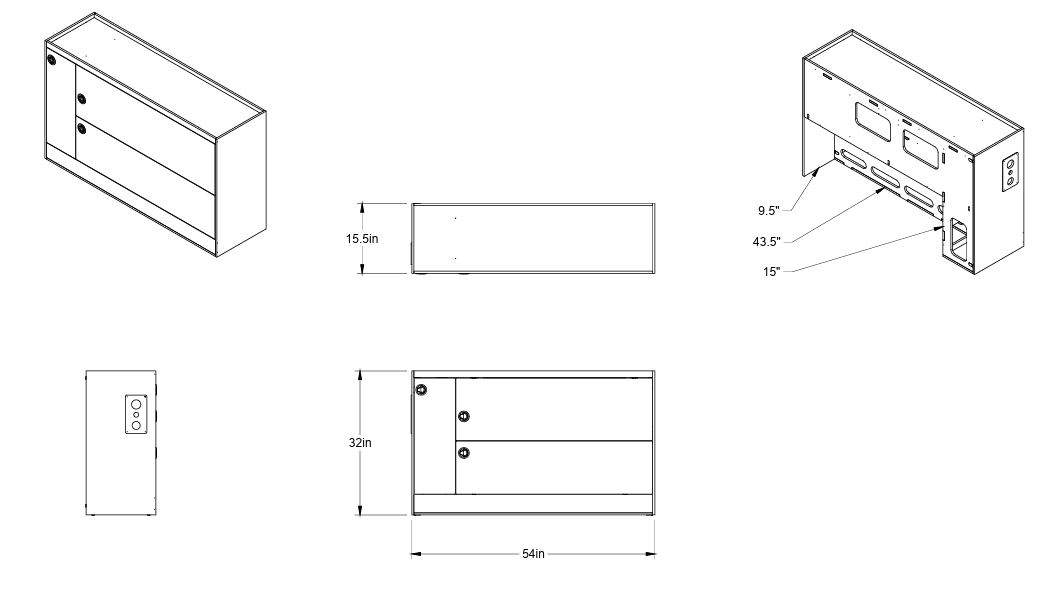

- Promaster compatibility available, please contact us for dimensions.
Warranty
5 Year Limited Warranty
