Sol-Ark 18k Whole Home Solar System

Description

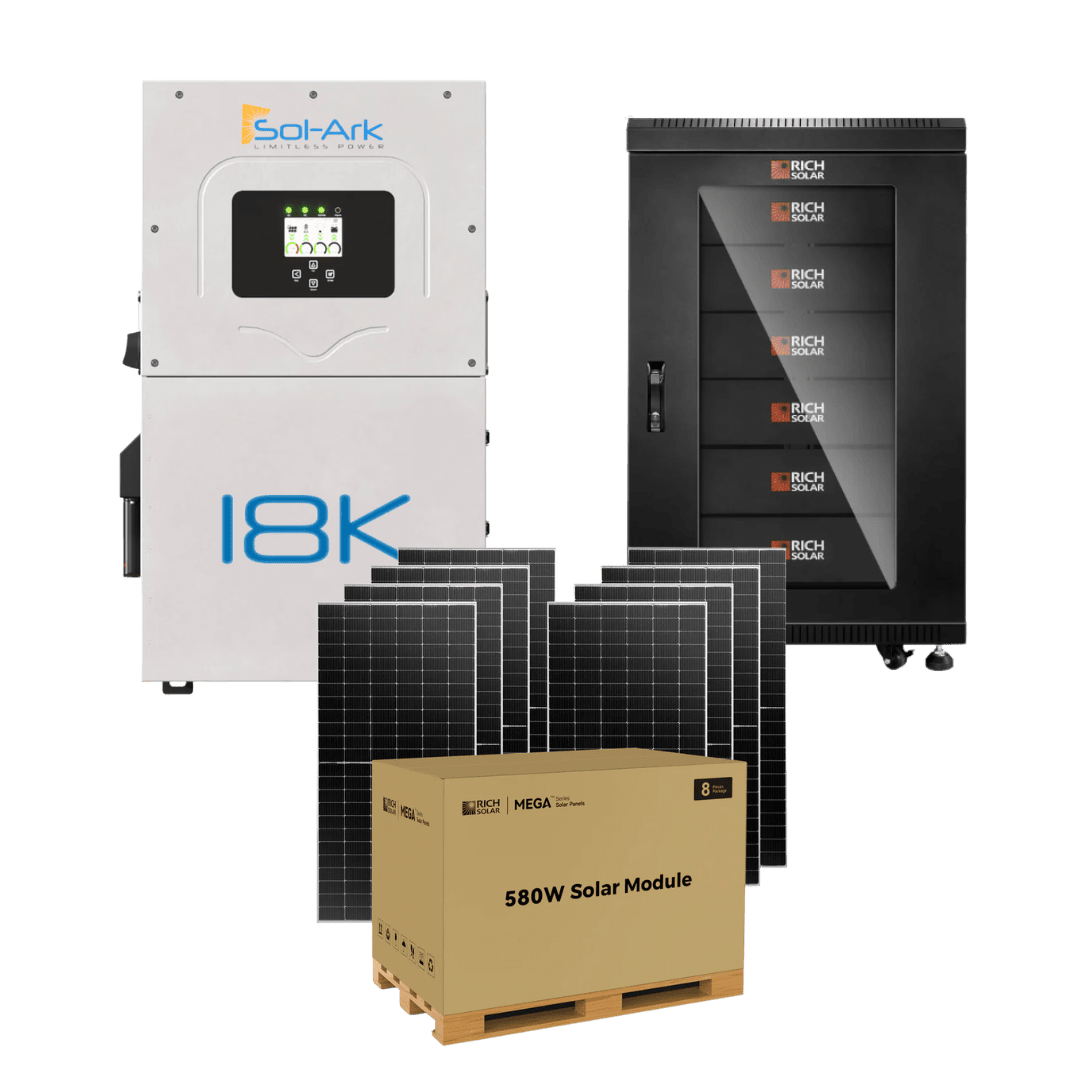

SOL-ARK 18K WHOLE HOME SOLAR SYSTEM

Take control of your energy needs with the SOL-ARK 18K Whole Home Solar System—an all-in-one hybrid solution designed for grid-tied, off-grid, or battery-backup setups. Built around the powerful Sol-Ark 18K-2P inverter, this system supports full-home energy independence with expandable 48V lithium battery banks and scalable solar array options. Whether you’re powering your homestead or prepping for grid-down scenarios, this system provides robust performance, seamless integration, and smart energy management.

Each system purchase includes a permit-ready one-line diagram to help streamline the permitting and installation process. The diagram includes only major components purchased from EXPLORIST.life and assumes existing breaker boxes—third-party batteries or solar panels will not be represented.

---

WHOLE HOME SOLAR SYSTEM FEATURES

• Key Features:
• All-in-One Power System – Features the Sol-Ark 18K-2P hybrid inverter, capable of simultaneous grid-tied, off-grid, and battery-backup operation.
• Flexible Power Capacity – Compatible with 48V battery banks (sold separately or bundled), allowing for scalable energy storage.
• Smart Load Management – Intelligent monitoring and control for prioritized loads, generator integration, and peak shaving.
• PV Array Options Available – Choose your preferred solar panel configurations based on system size and roof space.
• Permit-Ready One-Line Diagram – Included with every purchase, customized for your system components and existing breaker boxes.
• Whole Home Capable – Supports 120V/240V split-phase and 208V 3-phase configurations for true whole-home coverage.
• Comprehensive System Integration – Designed for seamless compatibility with Sol-Ark accessories, lithium batteries, and solar arrays.

---

WHAT’S INCLUDED:

• Sol-Ark 18K-2P Hybrid Inverter
• Optional: 48V Lithium Battery Bank (Choose configuration)
• Optional: Solar Panel Array (Choose configuration)
• Permit-Ready Non-Stamped One-Line Diagram (EXPLORIST.life components only)

---

Technical Specifications:

• Inverter Model: Sol-Ark 18K-2P Hybrid Inverter
• Battery Compatibility: 48V Lithium (expandable)
• Max PV Input Power: 27,000W
• AC Output: 120V/240V split-phase | 208V 3-phase compatible
• Max AC Output: 18,000W continuous
• Surge Power: 36,000W (5 seconds)
• Grid-Tied, Off-Grid, or Hybrid Operation
• Integrated MPPT Controllers
• Generator Input Supported
• Outdoor Rated: NEMA 3R Enclosure
• Communication: WiFi, Modbus, CAN, RS485
• Monitoring: Integrated web portal and mobile app

---

TECHNICAL SPECIFICATIONS:

Click to Expand:

• Inverter Model: Sol-Ark 18K-2P Hybrid Inverter
• Battery Compatibility: 48V Lithium (expandable)
• Max PV Input Power: 27,000W
• AC Output: 120V/240V split-phase | 208V 3-phase compatible
• Max AC Output: 18,000W continuous
• Surge Power: 36,000W (5 seconds)
• Grid-Tied, Off-Grid, or Hybrid Operation
• Integrated MPPT Controllers
• Generator Input Supported
• Outdoor Rated: NEMA 3R Enclosure
• Communication: WiFi, Modbus, CAN, RS485

View Sol-Ark 18K Data Sheet
View Sol-Ark 18K Product Manual
