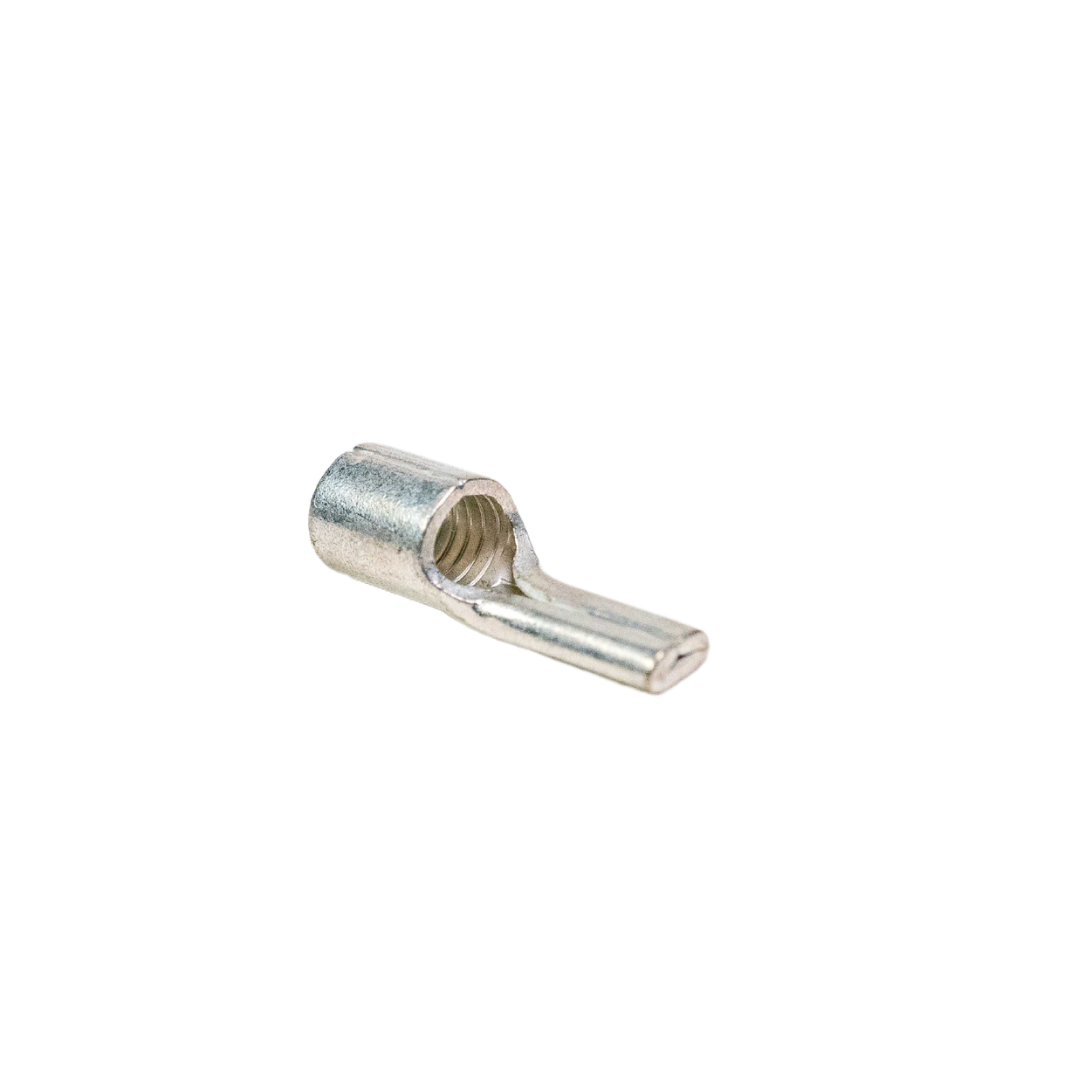

6 AWG Non-Insulated Pin Terminal

Description

The 6 AWG Non-Insulated Pin Terminal provides a reliable solution for connecting stranded copper wire to terminal blocks and other electrical components. Manufactured from tin-plated copper, this terminal provides a secure connection in applications where screw or clamp-style terminals are used.

Designed for 6 AWG stranded wire, the terminal features a brazed seam and a 5/8″ pin that allows larger wire to connect to compatible terminal blocks. Its pin-style design is particularly useful in applications where a reduced connection profile is needed. The tin-plated copper construction provides excellent electrical conductivity and corrosion resistance, making it suitable for RV, marine, van conversion, and off-grid electrical applications.

Rated for up to 95A and featuring UL recognition, this pin terminal provides a dependable connection for compatible electrical installations.

Sold individually, allowing you to order exactly the quantity needed for your electrical installation.

Technical Specifications

• Wire Size: 6 AWG
• Material: Tin-Plated Copper
• Construction: Brazed Seam
• Terminal Type: Non-Insulated Pin Terminal
• Pin Length: 5/8″ (16mm)
• Overall Length (L): 26.0mm (1.00″)
• Pin Width (W): 5.5mm (0.22″)
• Sleeve Outer Diameter (D): 8.4mm (0.33″)
• Sleeve Inner Diameter (D1): 5.8mm (0.23″)
• Material Thickness (T): 1.2mm (0.04″)
• Dimension F: 16.0mm (0.63″)
• Dimension E: 10.0mm (0.39″)
• Maximum Electrical Current: 95A
• UL Recognition: Yes (supplier-listed as UL Approved)
• CE Certified: Yes
• RoHS Compliant: Yes
• Quantity: 1 Terminal
