4 AWG SGX Wire (Per Foot)

Description

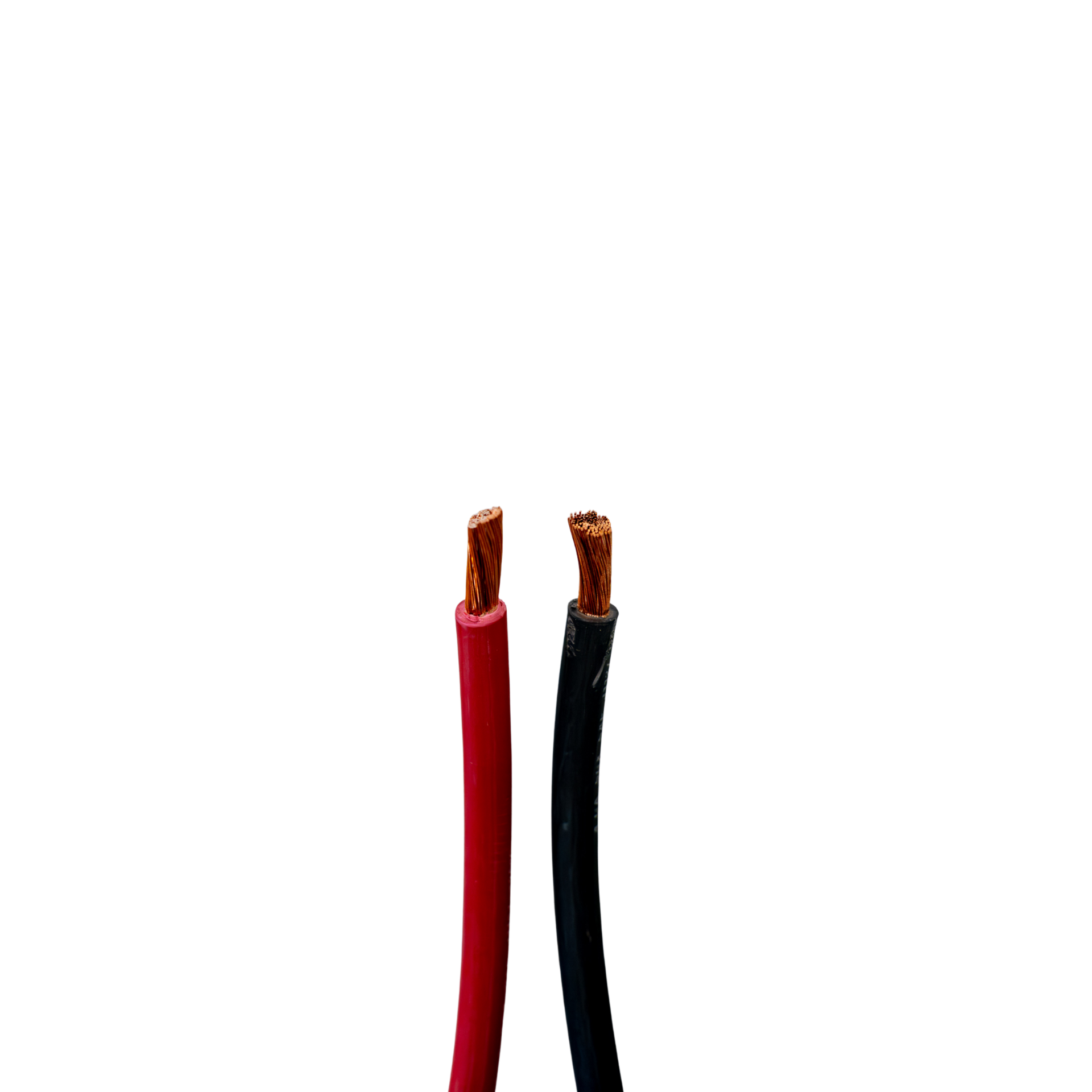

The 4 AWG SGX Wire (Red and Black) is a durable, flexible power cable designed for demanding low-voltage DC applications. Built with bare stranded copper conductors and rugged XLPE insulation, this wire is ideal for battery banks, solar installations, inverter connections, and other high-current power distribution systems in RV, marine, automotive, and off-grid environments.

SGX wire offers excellent flexibility for easier routing while maintaining strong resistance to heat, abrasion, and environmental wear. Available in both red and black insulation for clear polarity identification and clean system organization.

Sold by the Foot – Ordering Instructions:

• This cable is sold by the foot and ships as one continuous, uncut length per line item.
• Example: Quantity 6 = one continuous 6-foot cable.
• To receive multiple separate lengths, add each length to your cart individually.
  • Example: Two 3-foot sections = add quantity 3 twice.

Note: All cut wire sold by the foot is non-returnable.

Key Features:

• Bare stranded copper conductor for excellent conductivity
• Flexible SGX construction for easier installation
• Durable XLPE insulation resistant to abrasion and heat
• Available in red and black for polarity identification
• Ideal for low-voltage, high-current DC power systems Suitable for RV, marine, automotive, and off-grid applications

Technical Specifications:

• 4 AWG Wire (Red and Black) by the foot
• Size: 4 gauge (AWG)
• Type: Bare Copper Stranded SGX
• Wire Insulation Type: XLPE
• Temperature Rating: -40°C to +90°C
• Max Voltage: 60V DC
