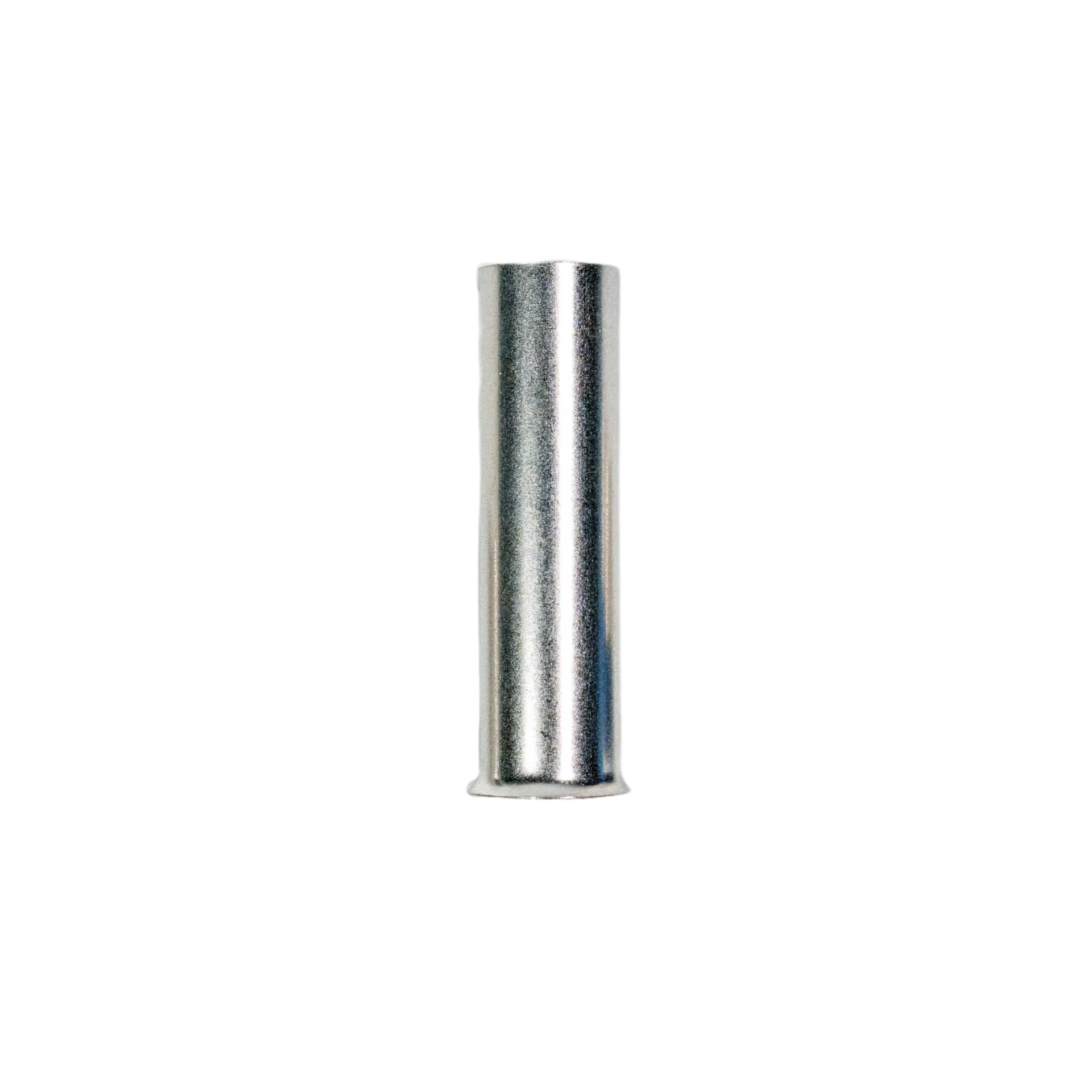

2 AWG Non-Insulated Wire Ferrule

Description

This 2 AWG non-insulated wire ferrule provides a clean, secure termination for 2 AWG (35mm²) stranded copper wire. Crimping the tin-plated copper sleeve over the conductor consolidates individual wire strands into a solid termination, helping prevent fraying and providing a reliable connection when installing large-gauge wire into terminal blocks, busbars, breakers, and other electrical equipment.

The 32mm (1.26″) long ferrule features an 8.3mm inner sleeve diameter and is constructed from tin-plated copper for excellent electrical conductivity and corrosion resistance. It is rated for 600V AC/DC and up to 170A, with a maximum operating temperature of 302°F (150°C). The ferrule is UL Recognized, CE Certified, RoHS Compliant, and REACH Compliant.

Sold individually, allowing you to order exactly the quantity needed for your electrical installation.

Key Features

• Designed for 2 AWG (35mm²) stranded wire
• Non-insulated design
• 32mm (1.26″) overall length
• Tin-plated copper construction
• Helps prevent stranded conductors from fraying
• Creates a clean, consolidated termination for large-gauge wire
• Maximum electrical rating: 600V AC/DC
• Maximum current rating: 170A
• Maximum operating temperature: 302°F (150°C)
• UL Recognized
• CE Certified
• RoHS and REACH compliant
• Sold individually


Technical Specifications

• Wire Size: 2 AWG (35.00mm²)
• Overall Length: 32.0mm (1.26″)
• Sleeve Outer Diameter: 8.7mm (0.34″)
• Sleeve Inner Diameter: 8.3mm (0.33″)
• Collar Inner Diameter: 10.2mm (0.40″)
• Material: Tin-Plated Copper
• Maximum Electrical Rating: 600V AC & DC
• Maximum Electrical Current: 170A
• Maximum Operating Temperature: 302°F (150°C)
• UL File Number: E326725
• UL Recognized: Yes
• CE Certified: Yes
• RoHS Compliant: Yes
• REACH Compliant: Yes
• Quantity: 1 Ferrule

Data Sheet

2 AWG Non-Insulated Wire Ferrule Data Sheet
