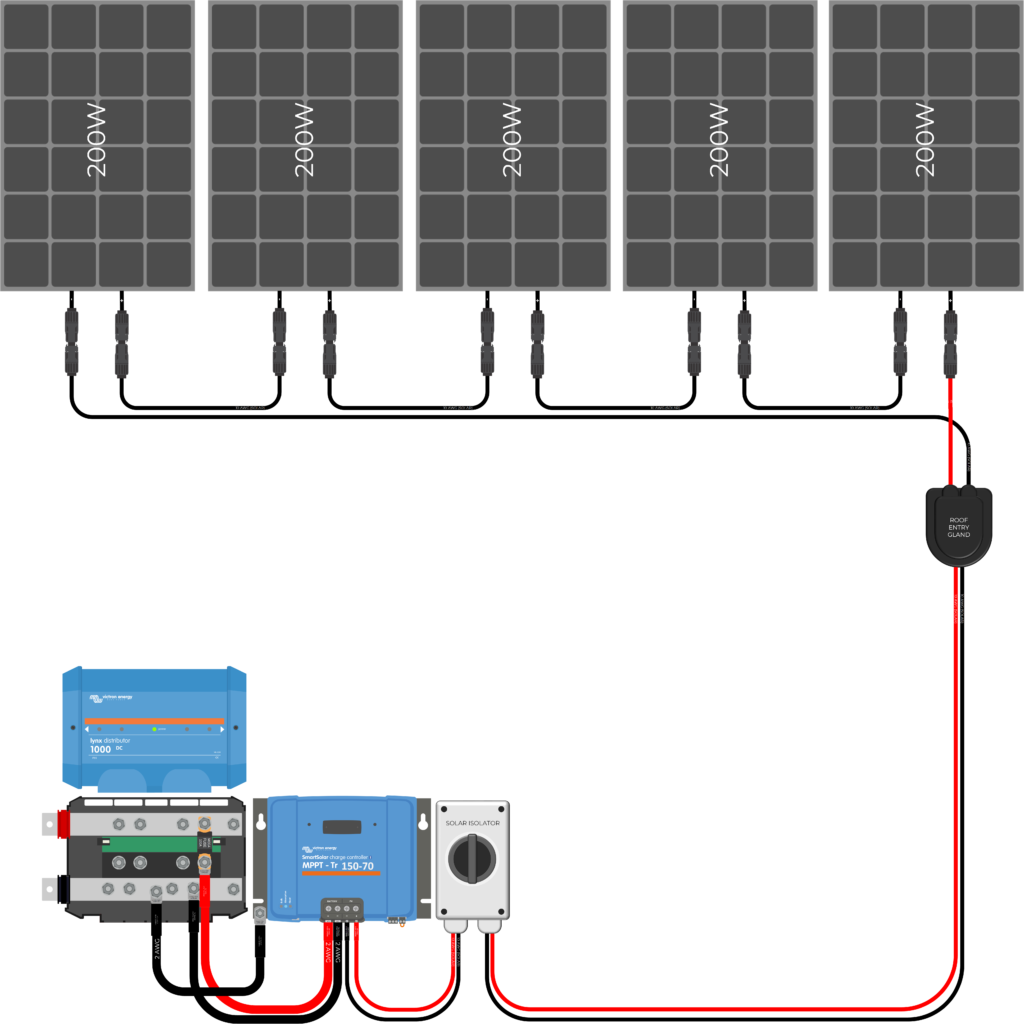

1000W Solar Charging Wiring Kit (5x 200W _ 12V Battery Bank)

1000W Solar Charging Wiring Kit (5x 200W | 12V Battery Bank)

From: $0.00

Victron SmartSolar MPPT 25070

Victron SmartSolar MPPT 250|70

The Victron SmartSolar MPPT 250|70 can regulate a solar array with an open circuit voltage of up to 250V down to charge a 12V, 24V, 36V, or 48V battery bank at a max rate of 70A, giving great flexibility when designing a solar array.

Original price was: $563.00.Current price is: $478.55.

In stock |Please allow 1-3 business days for processing.

Victron SmartSolar MPPT 250|70 Wiring Kit

$94.99
Solar Array Wiring Kit (SingleDualGround Deploy Array Options)

Solar Array Wiring Kit (Single/Dual/Ground Deploy Array Options)

PV Connector

$2.49 each

In stock |Please allow 1-3 business days for processing.

10AWG Solar Wire

10 AWG Solar Wire

Red and Black Solar Wire - Sold in 10ft increments (both red & black wire included)

Rich Solar 200 12V Solar Panel

Rich Solar Mega 200 Watt 12 Volt Solar Panel

Original price was: $239.99.Current price is: $219.99. each
RICHSOLARMountingHardwareZBrackets

Rich Solar Mounting Hardware Z Brackets

This Rich Solar Mounting Hardware Z Brackets are a great solution for mounting rigid solar panels to the roof of your camper.

Original price was: $22.99.Current price is: $12.99. each

Please allow 1-3 business days for processing.

SKU: bundle-solarcharging-5x200-12 Categories: , ,

Description

This solar charging wiring kit includes everything you need to be able to connect 5x 200w solar panels in series to your Victron Lynx Distributor that is charging your 12V battery bank.

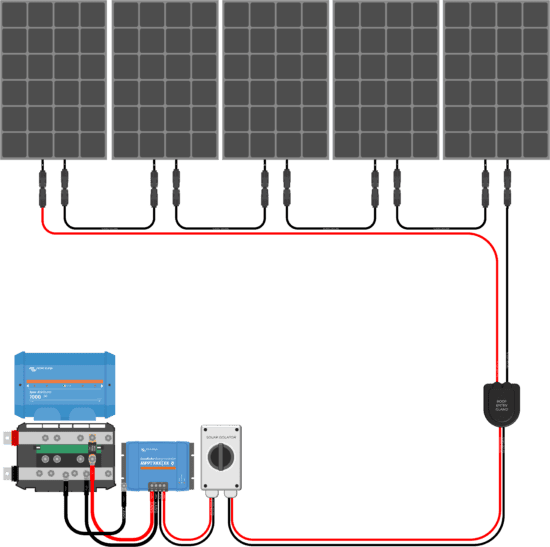

Wiring Diagram:

Here is the wiring diagram for this solar charging kit:

Additional information

Battery Bank Voltage

12V
Solar Panel Wattage

200W
Solar Panel Style

Rigid Panel

Victron SmartSolar MPPT 250|70

Weight 8 lbs
Dimensions 12 × 12 × 6 in
Max Input Voltage

250V
Max Amperage Output

70A
Battery Bank Voltage

12V, 24V, 36V, 48V
Max Wire Size

2 AWG

Victron SmartSolar MPPT 250|70 Wiring Kit

Weight 4 lbs
Dimensions 10 × 10 × 2 in

Solar Array Wiring Kit (Single/Dual/Ground Deploy Array Options)

Weight 2.5 lbs
Dimensions 10 × 10 × 4 in
Choose Your Array Type:

Single Roof Array, Dual Roof Array, Roof and Ground Deploy Arrays, Single Roof Array for OEM Solar Ready, Add-On Ground Deploy Array, Add-On 2nd Roof Array
Wiring Kit Application

Solar Array

PV Connector

Weight 0.2 lbs
Dimensions 4 × 1 × 1 in

10 AWG Solar Wire

Weight 0.2 lbs
Dimensions 10 × 10 × 0.1 in
Feet

10 ft., 20 ft., 30 ft., 40 ft., 50 ft., 60 ft., 70 ft., 80 ft., 90 ft., 100 ft.

Rich Solar Mega 200 Watt 12 Volt Solar Panel

Weight 26.5 lbs
Dimensions 58.7 × 26.8 × 1.2 in
Solar Panel Wattage

200W

Rich Solar Mounting Hardware Z Brackets

Weight 0.5 lbs
Dimensions 4 × 6 × 2 in
