Solar Array Wiring Kit (Single/Dual/Ground Deploy Array Options)

$19.99$129.99

Clear
SKU: wk-solararray Categories: , ,

Description

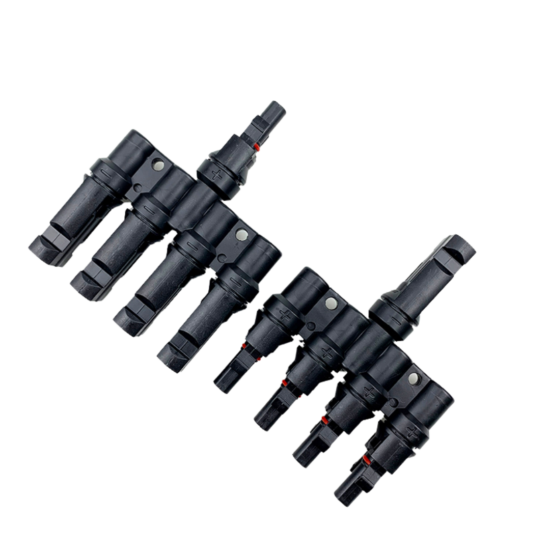

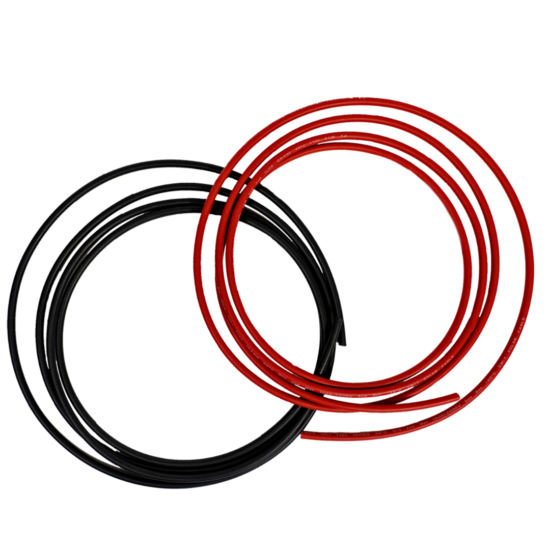

This kit includes the parts necessary to wire a solar array to a charge controller. This kit is to be purchased in conjunction with 10AWG Solar Wire, PV Connectors, PV Branch Connectors (as needed), and PV Fuses (as needed).

There are 5 options for the solar array wiring kit. Because the Solar Isolator can be wired to two separate solar arrays, the configuration options include:

  • Single Roof Solar Array
  • Dual Roof Solar Array
  • Single Roof Solar Array with a Ground Deploy Solar Array
  • Add-On Ground Deploy Solar Array
  • Add-On 2nd Roof Solar Array

SOLAR ARRAY WIRING KIT CONTENTS:

Single Roof Array Wiring Kit

The Single Roof Array Wiring Kit is designed to wire a single solar array from your roof down through the Roof Entry Gland to the Solar Isolator and to your Charge Controller. In addition to this kit, you will need to purchase the length of 10AWG Solar Wire needed, along with PV Connectors, PV Branch Connectors, and PV Fuses as needed in your solar array.

Component QTY
Solar Isolator Disconnect 1
3/8″ Red Heat Shrink 1 pc
3/8″ Black Heat Shrink 1 pc
10 AWG Ferrule 2
M25 Wire Glands 2
Roof Entry Gland 1
Solar Grommet 1
Mounting Hardware for Solar Isolator Switch 1 pk

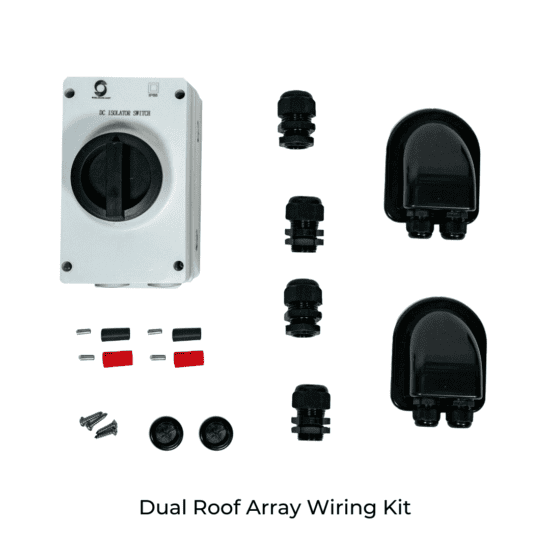

Dual Roof Array Wiring Kit

The Dual Roof Array Wiring Kit is designed to wire two solar arrays from your roof down through two Roof Entry Glands to the Solar Isolator and to the two Charge Controllers. In addition to this kit, you will need to purchase the length of 10AWG Solar Wire needed, along with PV Connectors, PV Branch Connectors, and PV Fuses as needed in your solar arrays.

Component QTY
Solar Isolator Disconnect 1
3/8″ Red Heat Shrink 2 pcs
3/8″ Black Heat Shrink 2 pcs
10 AWG Ferrule 4
M25 Wire Glands 4
Roof Entry Gland 2
Solar Grommet 2
Mounting Hardware for Solar Isolator Switch 1 pk
Single Roof and Single Ground Array Wiring Kit

The Single Roof and Single Ground Array Wiring Kit is designed to wire one solar array from your roof down through the Roof Entry Gland to the Solar Isolator as well as one ground deploy solar array through the Ground Deploy Port to the Solar Isolator. Both arrays would be wired to the Solar Isolator and then to the two Charge Controllers. In addition to this kit, you will need to purchase the length of 10AWG Solar Wire needed, along with PV Connectors, PV Branch Connectors, and PV Fuses as needed in your solar arrays.

Component QTY
Solar Isolator Disconnect 1
3/8″ Red Heat Shrink 2 pcs
3/8″ Black Heat Shrink 2 pcs
10 AWG Ferrule 4
M25 Wire Glands 4
Roof Entry Gland 1
Solar Grommet 1
Solar Ground Deploy Plug 1
Mounting Hardware for Solar Isolator Switch 1 pk
Single Roof Array Wiring Kit – OEM Solar Ready

The Single Roof Array Wiring Kit is designed for campers that come from the factory as “solar ready.” This kit includes everything you need to wire a single solar array from your roof down through the factory installed roof entry gland to the Solar Isolator and to your Charge Controller. In addition to this kit, you will need to purchase the length of 10AWG Solar Wire needed, along with PV Connectors, PV Branch Connectors, and PV Fuses as needed in your solar array.

Component QTY
Solar Isolator Disconnect 1
3/8″ Red Heat Shrink 1 pc
3/8″ Black Heat Shrink 1 pc
10 AWG Ferrule 2
M25 Wire Glands 2
10 AWG Butt Splice Connectors 2
Mounting Hardware for Solar Isolator Switch 1 pk
Add-On Ground Deploy Array Wiring Kit

The Add-On Ground Deploy Array Wiring Kit is designed to wire a ground deploy solar array to your existing Solar Isolator and to your second Charge Controller for the Ground Deploy. In addition to this kit, you will need to purchase the length of 10AWG Solar Wire needed, along with PV Connectors, PV Branch Connectors, and PV Fuses as needed in your solar array.

Component QTY
Solar Ground Deploy Plug 1
3/8″ Red Heat Shrink 1 pc
3/8″ Black Heat Shrink 1 pc
10 AWG Ferrule 2
M25 Wire Glands 2
Add-On 2nd Roof Array Wiring Kit

The Add-On Second Roof Array Wiring Kit is designed to wire a secondary roof solar array to your existing Solar Isolator and to your second Charge Controller for the second array. In addition to this kit, you will need to purchase the length of 10AWG Solar Wire needed, along with PV Connectors, PV Branch Connectors, and PV Fuses as needed in your solar array.

Component QTY
3/8″ Red Heat Shrink 1 pc
3/8″ Black Heat Shrink 1 pc
10 AWG Ferrule 2
M25 Wire Glands 2
Roof Entry Gland 1
Solar Grommet 1

How to Wire Camper Solar Charging:

https://youtu.be/01F4QDVJUq0?t=2520



How to Wire a Ground Deploy Solar Array:

https://youtu.be/E5q7_4FH4LQ?t=3721

ADDITIONAL PRODUCT INFORMATION:
  • Solar Isolator Disconnect
    • Cable Gland Size: M25 x 1.5 (cable glands not included)
    • Max Voltage: 1000V
    • Max Current: 63A
    • Color: Grey
    • Protection Degree: IP66
  • 10 AWG Ferrule
    • Size: 10 gauge (AWG)
    • Type: Tin Plated Copper
    • Max Voltage: 600V
    • Temperature Rating: 105°C
  • Roof Entry Gland
    • Dimensions: 3 3/4″W x 4 1/2″L x 1 1/2″H
    • UV Resistant
    • ABS Plastic
  • M25 Cable Gland
    • Type: M25
    • Cable Diameter: 10 – 15mm
    • Waterproof rated to IP68
  • Solar Grommet
    • Inside Diameter: 3/4″
    • Drill Hole: 1″ or 25mm
    • Material: Rubber
  • Solar Ground Deploy Plug
    • Type: 2-Pin
    • Max Current: 50A
    • Max Voltage: 500VAC
    • IP67 Waterproof
    • Panel Mount: Socket with Nut



Additional information

Weight 2.5 lbs
Dimensions 10 × 10 × 4 in
Choose Your Array Type:

Single Roof Array, Dual Roof Array, Roof and Ground Deploy Arrays, Single Roof Array for OEM Solar Ready, Add-On Ground Deploy Array, Add-On 2nd Roof Array
