2000W Solar Charging Wiring Kit (8x 250W | 24V Battery Bank)
From: $0.00
This solar charging wiring kit includes everything you need to be able to connect 8x 250w solar panels in series-parallel to your Victron Lynx Distributor that is charging your 24V battery bank.
Description
This solar charging wiring kit includes everything you need to be able to connect 8x 250w solar panels in series-parallel to your Victron Lynx Distributor that is charging your 24V battery bank.
Wiring Diagram:

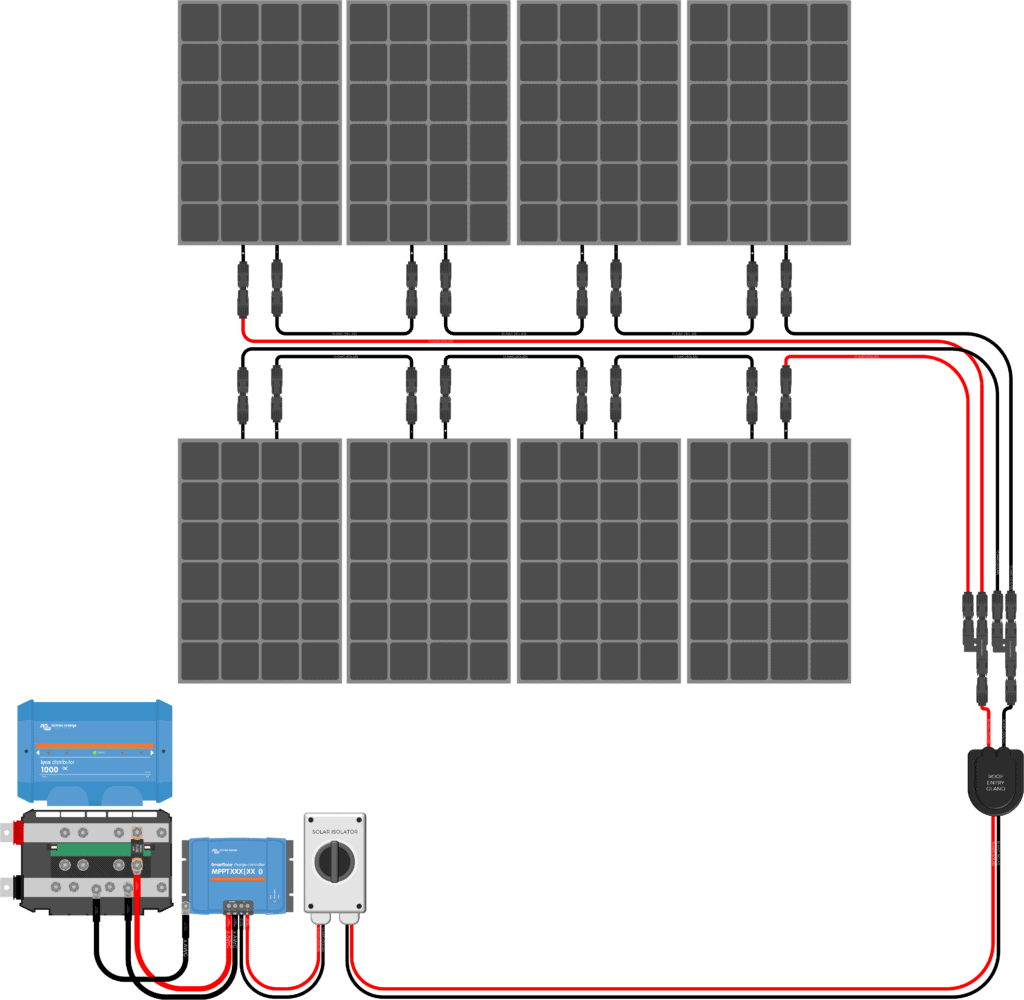

Here is the wiring diagram for the this solar charging kit:
Additional information
| Battery Bank Voltage | 24V |
|---|---|
| Solar Panel Wattage | 250W |
| Solar Panel Style | Rigid Panel |
Victron SmartSolar MPPT 150|70
| Weight | 7.5 lbs |
|---|---|
| Dimensions | 11 × 10 × 5.5 in |
| Max Input Voltage | 150V |
| Max Amperage Output | 70A |
| Battery Bank Voltage | 12V, 24V, 36V, 48V |
| Max Wire Size | 2 AWG |
Victron SmartSolar MPPT 150|70 Wiring Kit
| Weight | 4 lbs |
|---|---|
| Dimensions | 10 × 10 × 2 in |
Solar Array Wiring Kit (Single/Dual/Ground Deploy Array Options)
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 10 × 10 × 4 in |
| Choose Your Array Type: | Single Roof Array, Dual Roof Array, Roof and Ground Deploy Arrays, Single Roof Array for OEM Solar Ready, Add-On Ground Deploy Array, Add-On 2nd Roof Array |
| Wiring Kit Application | Solar Array |
PV Connector
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 4 × 1 × 1 in |
2-to-1 PV Branch Connector
| Weight | 0.3 lbs |
|---|---|
| Dimensions | 3 × 5 × 1 in |
20A PV Fuse
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 4 × 1 × 1 in |
10 AWG Solar Wire
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 10 × 10 × 0.1 in |
| Feet | 10 ft., 20 ft., 30 ft., 40 ft., 50 ft., 60 ft., 70 ft., 80 ft., 90 ft., 100 ft. |
Rich Solar Mega 250 Watt 12 Volt Solar Panel
| Weight | 25.8 lbs |
|---|---|
| Dimensions | 60.6 × 29.9 × 1.2 in |
| Solar Panel Wattage | 250W |
Rich Solar Mounting Hardware Z Brackets
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 4 × 6 × 2 in |
