Rich Solar Mega 35 Watt 12 Volt Solar Panel

Description

Full 580W Solar Charging Wiring Kit as seen in our 2021 Ford Transit Campervan build is available HERE.

Rich Solar Mega 35 Watt 12 Volt Solar Panel as seen in our custom Ford Transit solar setup here:

---

Installation:

• Easy installation and handling for various applications.
• Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
• Compatible with on-grid and off-grid inverters.

---

Product Features:

• 12V off-grid solar panel.
• 0~+5W guaranteed positive power output.
• IP 65 or IP 67 rated.
• Built with strong tempered glass and aluminum frame.
• Certified to withstand challenging environmental conditions.
• Excellent low light performance on cloudy days, mornings and evenings.

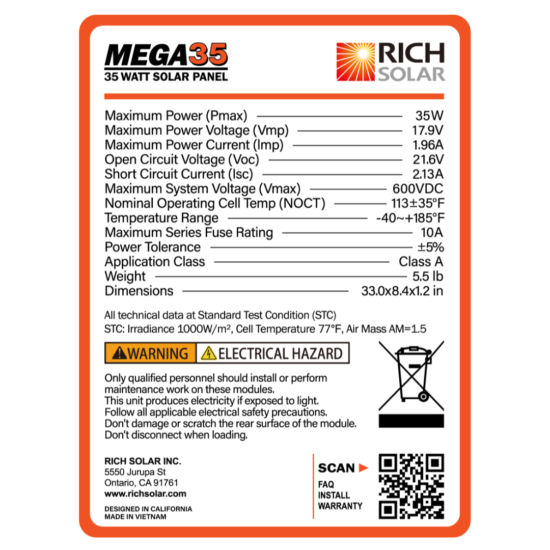

Product Specifications:

• Maximum Power(Pmax): 35W
• Maximum Power Voltage(Vmp): 17.9V
• Maximum Power Current(Imp): 1.96A
• Open Circuit Voltage(Voc): 21.6V
• Short Circuit Current(Isc): 2.13A
• Maximum System Voltage(Vmax): 600V DC
• Weight: 5.5 lbs
• Dimensions: 33.0 x 9.5 x 1.2 inches

Rich Solar Warranty

• 25 year limited power output.
• 5 years materials and workmanship.

Built-in Components:

• RICH SOLAR 35 Watt Monocrystalline Solar Panel
• Panel Leads (Pair): 12AWG, 3FT each
• IP65 Rated waterproof junction box
• IP67 Rated waterproof solar connectors

Product ships separately from EXPLORIST.life components. Ships from Rich Solar warehouse.
