ALL-IN-ONE 4 Battery Bank – MultiPlus 2k 12V – Orion 12-12|30 Wiring Diagram Kit

$849.99

In stock  | Please allow 1-3 business days for processing.

Add the Components:

Victron Lynx Distributor

Victron Orion Tr-Smart 12V-12V | 30A Isolated DC-DC Charger

120V AC Distribution Panel

12V DC Fuse Panel

Victron VE.Bus Smart Dongle

Victron BMV-712 Battery Monitor (Black)

SKU: wk-allinone-400ah2k12v121230 Categories: , , ,

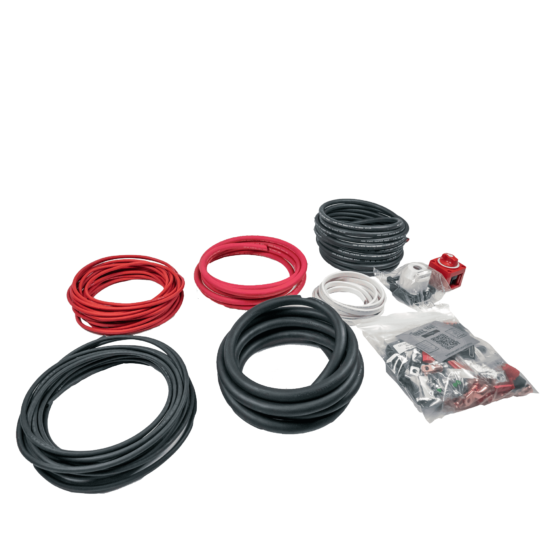

This is an ALL-IN-ONE complete camper electrical wiring kit for a 4 Battery Bank, Victron MultiPlus 2k 12V, with Victron Orion 12-12 | 30 Alternator Charging as seen in this wiring diagram. The ALL-IN-ONE kit includes enough wire for each leg of the system but is spooled continuously as one length noted below for flexibility in your application. In addition, the ALL-IN-ONE kit includes the hardware, lugs, heat shrink, and fuses for each leg of the system as noted below. THIS KIT DOES NOT INCLUDE ANY VICTRON COMPONENTS, AC DISTRIBUTION PANEL, OR DC FUSE PANEL (sold separately).

This is the complete DIY camper electrical wiring kit as shown in the following video but with the solar charging leg of the system omitted. We’ve omitted the solar charging leg of this system for those of you who wish to use a bigger solar array. Add this kit to your cart and then navigate to our Solar Charging Wiring Kits page and add the desired kit to your cart to round out your electrical system.

This Kit Also Requires:

COMPONENT:QTY:LINK TO BUY:
Victron MultiPlus 12/2000/80-50 120V1CLICK HERE TO BUY
Suitable Battery Options (minimum 200Ah required, kit provides wiring for 4 batteries):
Battle Born 100Ah 12V LiFePO4 Deep Cycle Battery2+CLICK HERE TO BUY
Battle Born 100Ah 12V LiFePO4 Deep Cycle Heated Battery2+CLICK HERE TO BUY
Battle Born 270Ah 12V LiFePO4 Deep Cycle GC3 Battery1+CLICK HERE TO BUY
Battle Born 270Ah 12V LiFePO4 Deep Cycle Heated GC3 Battery1+CLICK HERE TO BUY
Solar Charging Wiring KitsCLICK FOR OPTIONS

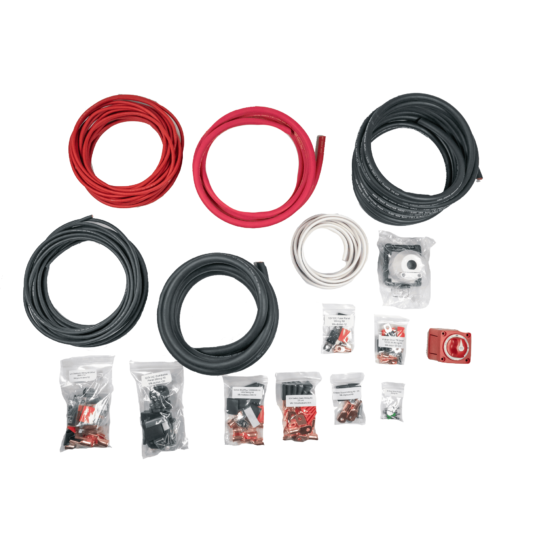

ALL-IN-ONE KIT CONTENTS:

Click to Expand:

Wire Included:

(Suggested wire lengths per leg noted in parentheses):

Wire Type:Wire Location(s):Wire Length:
2/0 Black Battery WireBattery Bank (3ft), Lynx Distributor (5ft), MultiPlus (10ft), Chassis Ground (5ft)23ft
2/0 Red Battery WireBattery Bank (3ft), Lynx Distributor (5ft), MultiPlus (5ft)13ft
6AWG Black Battery WireOrion Alternator Charger (20ft), 12V Fuse Panel (10ft)30ft
6AWG Red Battery WireOrion Alternator Charger (20ft), 12V Fuse Panel (10ft)30ft
6/3 SOOW Triplex Wire120V AC Distribution Panel (10ft)10ft
10AWG Triplex Marine WireShore Power (10ft)10ft

Component Hardware Kits Included (click to expand each kit):

12V Battery Bank – 4 Batteries 2/0:
Component:QTY:
2/0 x 5/16″ Wire Lugs12
3/4″ Red Heat Shrink6
3/4″ Black Heat Shrink6
Lynx Distributor Wiring Kit – 2/0 BMV-712
Component:QTY:
Blue Sea m-Series 6006 Master Disconnect1
2/0 x 5/16″ Wire Lugs2
2/0 x 3/8″ Wire Lugs2
18 – 22 AWG Butt Splice Connector1
3/4″ Red Heat Shrink2
3/4″ Black Heat Shrink2
300 Amp MRBF Fuse1
MRBF 30-300A Terminal Fuse Block with Cover1
Lynx Adapter2
Lynx Distributor Mounting Hardware1pk
BMV-712 Shunt Mounting Hardware1pk
MRBF 30-300A Terminal Fuse Block Hardware1pk
Master Disconnect Mounting Hardware1pk
Victron MultiPlus 12/2000/80-50 120V Wiring Kit
Component:QTY:
2/0 x 5/16″ Wire Lugs6
3/4″ Red Heat Shrink2
3/4″ Black Heat Shrink4
300 Amp MEGA Fuse1
Victron MultiPlus Mounting Hardware1pk
Chassis Ground Wire Kit – 2/0
Component:QTY:
2/0 x 5/16″ Wire Lugs2
3/4″ Black Heat Shrink2
Chassis Ground Hardware1pk
Orion-TR Smart Isolated DC/DC Charger Wiring Kit
Component:QTY:
6 AWG x 5/16″ Wire Lugs4
6 AWG Ferrule4
1/2″ Red Heat Shrink4
1/2″ Black Heat Shrink4
60 Amp MEGA Fuse1
60 Amp Surface Mount Circuit Breaker1
Orion-TR Smart Charger Mounting Hardware1pk
Progressive Dynamics 12V Fuse Panel Wiring Kit
Component:QTY:
6 AWG x 5/16″ Wire Lugs2
6 AWG Insulated Ferrule2
1/2″ Red Heat Shrink1
1/2″ Black Heat Shrink1
100 Amp MEGA Fuse1
Progressive Dynamics 12V Fuse Panel Mounting Hardware1pk
Progressive Dynamics 120V AC Distribution Panel Wiring Kit
Component:QTY:
6 AWG Insulated Ferrule6
50 Amp HOM Breaker1
1″ Black Heat Shrink1
PG29 Cable Gland1
Progressive Dynamics 120V Distribution Panel Mounting Hardware1pk
30 Amp Shore Power Wiring Kit
Component:QTY:
10 AWG Insulated Ferrule3
30 Amp Shore Power Inlet – Black1
Shore Power Inlet Mounting Hardware1pk

Full Tutorial: 600Ah Battery Bank – MultiPlus 3k 12V – Orion 12-12|30 Mercedes Sprinter Camper Van

Note: Installation tutorial shown in the video below shows the same concepts in a different system. Some products may vary.

Product Specifications:
  • 2/0 Wire (red and black):
    • Size: 00 gauge (4/0 AWG)
    • Type: Fully annealed soft-drawn copper SGR
    • Insulation: Highly flexible EPDM
    • Temperature Rating: -50°C to +105°C
    • Max Voltage: 60V
  • 6 AWG Wire (Red and Black)
    • Size: 6 gauge (AWG)
    • Type: Bare Copper Stranded SGX Wire
    • Insulation Type: XLPE
    • Temperature Rating: -40°C to +90°C
    • Max Voltage: 60V DC
  • 10 AWG Triplex Wire Product Information:
    • Size: 10 gauge (AWG)
    • Conductors: 3
    • Type: Tinned Copper Stranded Wire
    • UL Standard 1426
    • Jacket Material: Polyvinylchloride (PVC)
    • Max Voltage: 600V
    • Temperature Rating: 105°C dry; 75°C wet
  • 6 AWG Triplex Wire Product Information:
    • Size: 6 gauge (AWG)
    • Conductors: 3
    • Type: Bare Copper Stranded Wire
    • Insulation Type: Premium Grade EPDM
    • UL Standard 62
    • Temperature Rating: -40°C to +90°C
    • Max Voltage: 600V
  • 2/0 x 5/16″ Wire Lug
    • Size: 2/0 AWG
    • Type: Standard Bare Copper
    • Size: 5/16″
  • 6 AWG x 5/16″ Wire Lugs
    • Size: 6 gauge (AWG)
    • Type: Standard Bare Copper
    • Size: 5/16″
  • 6 AWG Ferrules
    • Size: 6 gauge (AWG)
    • Type: Tin Plated Copper
    • Max Voltage: 600V
    • Temperature Rating: 105°C
  • 6 AWG Insulated Ferrules
    • Size: 6 gauge (AWG)
    • Type: Tin Plated Copper
    • Max Voltage: 600V
    • Temperature Rating: 105°C
  • 10 AWG Insulated Ferrules:
    • Size: 10 gauge (AWG)
    • Type: Tin Plated Copper
    • Max Voltage: 600V
    • Temperature Rating: 105°C
  • 300 Amp MEGA Fuse
    • Current Rating: 300A
    • Voltage Rating: 32V
    • Type: Bolt Down Fuse
    • Terminal: Copper
  • 100Amp MEGA Fuse
    • Current Rating: 100A
    • Voltage Rating: 32V
    • Type: Bolt Down Fuse
    • Terminal: Copper
  • 60 Amp MEGA Fuse
    • Current Rating: 60A
    • Voltage Rating: 32V
    • Type: Bolt Down Fuse
    • Terminal: Copper
  • 50 Amp Square D HOM150 Breaker
    • Manufacturer: Square D
    • Amperage: 50
    • Voltage: 120V
    • Voltage Type: AC
    • Poles: 1
    • Frame Type: HOM
  • Blue Sea Systems 6006 m-Series Battery Switch
    • 2 Switch Positions
    • Max Voltage: 48V
    • Amperage Rating: Continuous at 300A. Intermittent of 500A (5 minutes)
  • 30 Amp Shore Power Inlet:
    • Exterior Color: Black
    • Voltage: 125V
    • Amperage: 30A
    • Marine Grade
Weight 36 lbs
Dimensions 12 × 12 × 12 in
