12V/USB Outlet Branch Circuit Wiring Kit

$24.99$64.99

Add the Fuse Panel:

12V DC Fuse Panel

SKU: wk-12vbranch-usb12 Categories: , ,

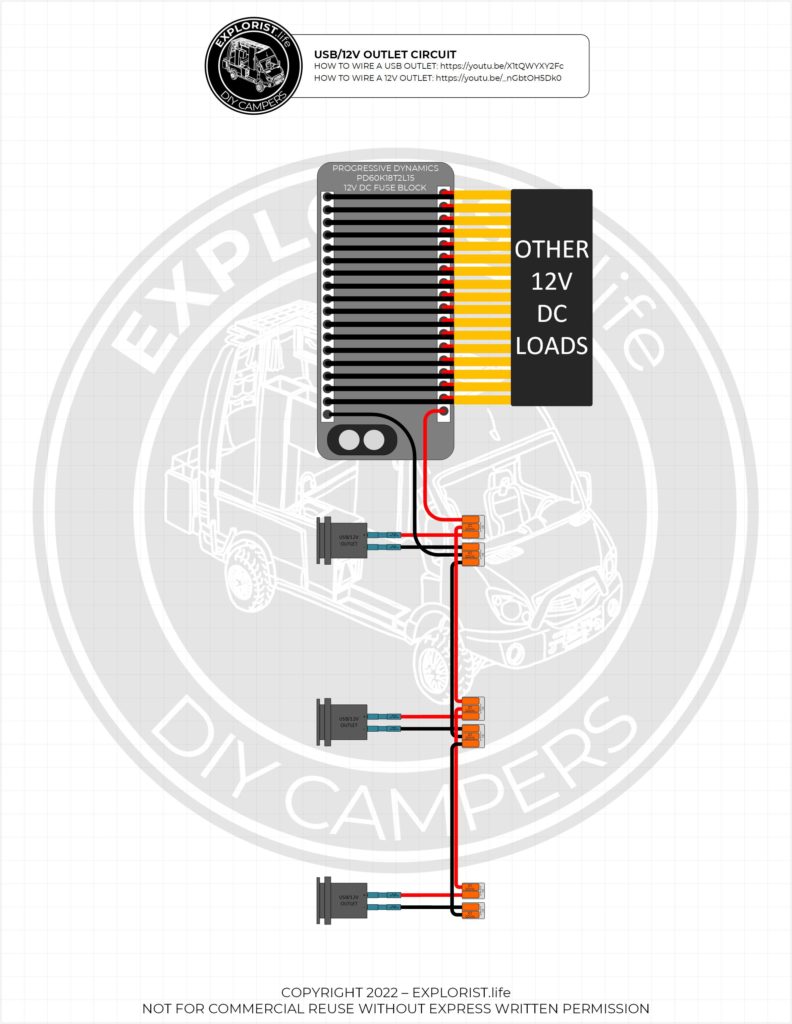

This wiring kit contains everything you need to connect your 12V outlets or USB outlets in a circuit of up to 3 outlets from your DC Fuse Panel.

This kit includes:

VARIABLE: 14/12/10AWG Red WireVARIES
VARIABLE: 14/12/10AWG Black WireVARIES
3-Conductor Wago Lever Nut4
2-Conductor Wago Lever Nut2
VARIABLE: 16-14 OR 12-10AWG Spade Connector6
15A Eaton Bussman ATC Blade Fuse1

How to wire USB Outlets | Tutorial Video


Product Information:

  • 14/12/10 AWG Wire (Red and Black)
    • Size: 14, 12, or 10 gauge (AWG) – varies based on selections
    • Type: Tin plated copper
    • Insulation Type: PVC
    • Temperature Rating: -40°C to +105°C (dry)
    • Max Voltage: 600V
  • Wago Lever Nut (2 and 3 Conductor)
    • Manufacturer: Wago
    • Series: 221
    • UL Listed
  • Spade Connector
    • Size: 14-16 AWG or 12-10 AWG (varies based on selections)
    • Connector Type: Female
    • Insulation Material: Adhesive Lined Heat Shrink
    • Contact Material: Tin Plated Brass
  • Blade Fuse
    • Series: ATC
    • Current Rating: 15A
    • UL Listed
    • Nominal Voltage: 32VDC
    • Blade Width: 5.25mm

Weight 3 lbs
Dimensions 10 × 10 × 2 in
Circuit Length - Distance from Fuse Panel to Furthest Outlet

10 ft., 20 ft., 30 ft., 40 ft.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
