Battle Born Energy Van Bundle 200Ah Wiring Kit

Battle Born Energy Van Kit 200Ah Wiring Kit

From: $1,289.99

SKU: wk-allinone-bbbundle-200 Categories: , , ,

Description

This is the complete camper electrical wiring kit to wire your Battle Born Energy Van Kit Power System Bundle for either 2x100Ah 12V Deep Cycle Batteries or 2x100Ah 12V GC2 Deep Cycle Batteries. If you have purchased or plan to purchase one of these Power System Bundles from Battle Born Batteries, this kit will complete your build needs with all of the wiring, lugs, heat shrink, and additional components needed.

ALL-IN-ONE KIT CONTENTS:

Click to Expand:

Wire Included:

(Suggested wire lengths per leg noted in parentheses):

Wire Type: Wire Location(s): Wire Length:
2/0 Black Battery Wire Battery Bank (1ft), Lynx Distributor (5ft), MultiPlus (10ft), Chassis Ground (5ft) 21ft
2/0 Red Battery Wire Battery Bank (1ft), Lynx Distributor (5ft), MultiPlus (5ft) 11ft
6 AWG Black Battery Wire Orion Alternator Charger (20ft), 12V Fuse Panel (10ft), MPPT Charge Controller (5ft), MPPT Ground (3ft) 38ft
6 AWG Red Battery Wire Orion Alternator Charger (20ft), 12V Fuse Panel (10ft), MPPT Charge Controller (5ft) 35ft
6/3 SOOW Triplex Wire 120V AC Distribution Panel (10ft) 10ft
10 AWG Triplex Marine Wire Shore Power (10ft) 10ft
10 AWG Solar Wire Solar Array 30ft

Additional Components Included:

Component: QTY:
Victron Lynx Distributor* SEE NOTE 1
Progressive Dynamics 120V AC Distribution Panel 1
Progressive Dynamics 12V DC Fuse Panel 1
PV Connectors 3
Solar Isolator Disconnect 1
Roof Entry Gland (Black) 1
*NOTE: Orders placed before 12/5/2022 do NOT include the Victron Lynx Distributor. This was added and price adjusted on 12/5/2022.

Component Hardware Kits Included (click to expand each kit):

12V Battery Bank – 2 Batteries 2/0:
Component: QTY:
2/0 x 5/16″ Wire Lugs 4
3/4″ Red Heat Shrink 2
3/4″ Black Heat Shrink 2
Lynx Distributor Wiring Kit – 2/0 BMV-712
Component: QTY:
2/0 x 5/16″ Wire Lugs 4
2/0 x 3/8″ Wire Lugs 2
18 – 22 AWG Butt Splice Connector 1
3/4″ Red Heat Shrink 4
3/4″ Black Heat Shrink 2
300 Amp MRBF Fuse 1
MRBF 30-300A Terminal Fuse Block 1
Lynx Adapter 2
Lynx Distributor Mounting Hardware 1pk
BMV-712 Shunt Mounting Hardware 1pk
ANL Fuse Holder Mounting Hardware 1pk
Victron MultiPlus 12/2000/80-50 120V Wiring Kit
Component: QTY:
2/0 x 5/16″ Wire Lugs 6
3/4″ Red Heat Shrink 2
3/4″ Black Heat Shrink 4
300 Amp MEGA Fuse 1
Victron MultiPlus Mounting Hardware 1pk
Chassis Ground Wire Kit – 2/0
Component: QTY:
2/0 x 5/16″ Wire Lugs 2
3/4″ Black Heat Shrink 2
Chassis Ground Hardware 1pk
Orion-TR Smart Isolated DC/DC Charger Wiring Kit
Component: QTY:
6 AWG x 5/16″ Wire Lugs 4
6 AWG Ferrule 4
1/2″ Red Heat Shrink 4
1/2″ Black Heat Shrink 4
60 Amp MEGA Fuse 1
60 Amp Surface Mount Circuit Breaker 1
Orion-TR Smart Charger Mounting Hardware 1pk
Progressive Dynamics 12V Fuse Panel Wiring Kit
Component: QTY:
6 AWG x 5/16″ Wire Lugs 2
6 AWG Insulated Ferrule 2
1/2″ Red Heat Shrink 1
1/2″ Black Heat Shrink 1
100 Amp MEGA Fuse 1
Progressive Dynamics 12V Fuse Panel Mounting Hardware 1pk
Progressive Dynamics 120V AC Distribution Panel Wiring Kit
Component: QTY:
6 AWG Insulated Ferrule 6
50 Amp HOM Breaker 1
1″ Black Heat Shrink 1
PG29 Cable Gland 1
Progressive Dynamics 120V Distribution Panel Mounting Hardware 1pk
30 Amp Shore Power Wiring Kit
Component: QTY:
10 AWG Insulated Ferrule 3
30 Amp Shore Power Inlet – Black 1
Shore Power Inlet Mounting Hardware 1pk
Victron SmartSolar MPPT 100|50 Wiring Kit
Component: QTY:
6 AWG Insulated Ferrule 2
6 AWG x 5/16″ Wire Lug 3
6 AWG x 1/4″ Wire Lug 1
1/2″ Red Heat Shrink 2 pcs
1/2″ Black Heat Shrink 4 pcs
60 Amp MEGA Fuse 1
Victron SmartSolar MPPT 100|50 Mounting Hardware 1pk

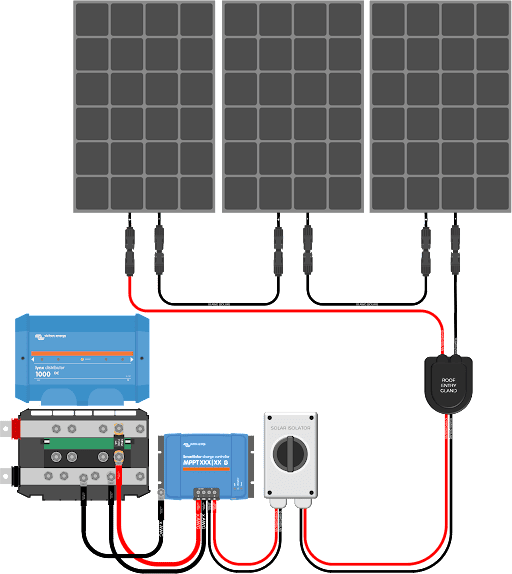

Solar Array Wiring Kit – Single Roof Array
Component: QTY:
10 AWG Ferrule 2
M25 Wire Glands 2
Solar Grommet 1
3/8″ Red Heat Shrink 1 pc
3/8″ Black Heat Shrink 1 pc
Solar Isolator Disconnect Mounting Hardware 1pk

This Kit Also Requires ONE of the Following Battle Born Energy Power System Bundles:

COMPONENT QUANTITY LINK TO BUY
Battle Born Energy Van Kit Power System Bundle – 200Ah 1 CLICK HERE TO BUY
Battle Born Energy Van GC2 Kit Power System Bundle – 200Ah 1 CLICK HERE TO BUY

Full Tutorial: 600Ah Battery Bank – MultiPlus 3k 12V – Orion 12-12|30 Mercedes Sprinter Camper Van

Installation tutorial shown in the video below shows the same concepts in a different system. Some products may vary.

https://www.youtube.com/watch?v=01F4QDVJUq0
Product Specifications:
  • 4/0 Wire (red and black):
    • Size: 0000 gauge (4/0 AWG)
    • Type: Fully annealed soft-drawn copper SGR
    • Insulation: Highly flexible EPDM
    • Temperature Rating: -50?C to +105?C
    • Max Voltage: 60V
  • 6 AWG Wire (Red and Black)
    • Size: 6 gauge (AWG)
    • Type: Bare Copper Stranded SGX Wire
    • Insulation Type: XLPE
    • Temperature Rating: -40?C to +90?C
    • Max Voltage: 60V DC
  • 10 AWG Triplex Wire Product Information:
    • Size: 10 gauge (AWG)
    • Conductors: 3
    • Type: Tinned Copper Stranded Wire
    • UL Standard 1426
    • Jacket Material: Polyvinylchloride (PVC)
    • Max Voltage: 600V
    • Temperature Rating: 105?C dry; 75?C wet
  • 6 AWG Triplex Wire Product Information:
    • Size: 6 gauge (AWG)
    • Conductors: 3
    • Type: Bare Copper Stranded Wire
    • Insulation Type: Premium Grade EPDM
    • UL Standard 62
    • Temperature Rating: -40?C to +90?C
    • Max Voltage: 600V
  • 4/0 x 5/16″ Wire Lug
    • Size: 4/0 AWG
    • Type: Standard Bare Copper
    • Size: 5/16″
  • 6 AWG x 5/16? Wire Lugs
    • Size: 6 gauge (AWG)
    • Type: Standard Bare Copper
    • Size: 5/16?
  • 6 AWG Ferrules
    • Size: 6 gauge (AWG)
    • Type: Tin Plated Copper
    • Max Voltage: 600V
    • Temperature Rating: 105?C
  • 6 AWG Insulated Ferrules
    • Size: 6 gauge (AWG)
    • Type: Tin Plated Copper
    • Max Voltage: 600V
    • Temperature Rating: 105?C
  • 10 AWG Insulated Ferrules:
    • Size: 10 gauge (AWG)
    • Type: Tin Plated Copper
    • Max Voltage: 600V
    • Temperature Rating: 105?C
  • 400 Amp MEGA Fuse
    • Current Rating: 400A
    • Voltage Rating: 32V
    • Type: Bolt Down Fuse
    • Terminal: Copper
  • 100Amp MEGA Fuse
    • Current Rating: 100A
    • Voltage Rating: 32V
    • Type: Bolt Down Fuse
    • Terminal: Copper
  • 60 Amp MEGA Fuse
    • Current Rating: 60A
    • Voltage Rating: 32V
    • Type: Bolt Down Fuse
    • Terminal: Copper
  • 400 Amp ANLFuse
    • Current Rating: 400A
    • Voltage Rating: 32V
    • Type: Bolt Down Fuse
    • Terminal: Silver Plated Copper
  • 50 Amp Square D HOM150 Breaker
    • Manufacturer: Square D
    • Amperage: 50
    • Voltage: 120V
    • Voltage Type: AC
    • Poles: 1
    • Frame Type: HOM
  • 30 Amp Shore Power Inlet:
    • Exterior Color: Black
    • Voltage: 125V
    • Amperage: 30A
    • Marine Grade
  • Progressive Dynamics PD60K18T2L15 12V DC Fuse Panel:
    • Manufacturer: Progressive Dynamics
    • Mounting: Flush Mount
    • Output Circuits: 18 Circuits
    • 160 Amp Max Panel Current
    • Fuse Blown LED Indicator Lights
    • For use with Copper Wire Only
  • Progressive Dynamics PD5500 120V AC Distribution Panel:
    • Single Phase
    • Type 1 Enclosure ? Indoor
    • 3 Wire AC with Grounded Neutral
  • 60A DC Circuit Breaker:
    • Current Rating: 60A
    • Voltage Rating: 48V
    • Reset Method: Type III Switchable Reset
    • Mounting Style: Surface Mount
    • Connection Style: 1/4? ? 28 Threaded Stud
  • Solar Isolator Disconnect
    • Cable Gland Size: M25 x 1.5 (cable glands not included)
    • Max Voltage: 1000V
    • Max Current: 63A
    • Color: Grey
    • Protection Degree: IP66
  • Roof Entry Gland
    • Dimensions: 3 3/4?W x 4 1/2?L x 1 1/2?H
    • UV Resistant
    • ABS Plastic
  • M25 Cable Gland
    • Type: M25
    • Cable Diameter: 10 ? 15mm
    • Waterproof rated to IP68
  • Solar Grommet
    • Inside Diameter: 3/4?
    • Drill Hole: 1? or 25mm
    • Material: Rubber

Additional information

Weight 50 lbs
Dimensions 14 × 12 × 12 in
